DAF XG Electric
The XG Electric 4x2: up to 525 kWh of LFP with an eight-year battery warranty, over 550 km, and a drive axle within limits, but charging stops at 325 kW (no megawatt option).
Battery525 (five packs) kWh
Rangeover 550 (DAF's figure… km
DC chargingup to 325 (CCS2); 150 … kW

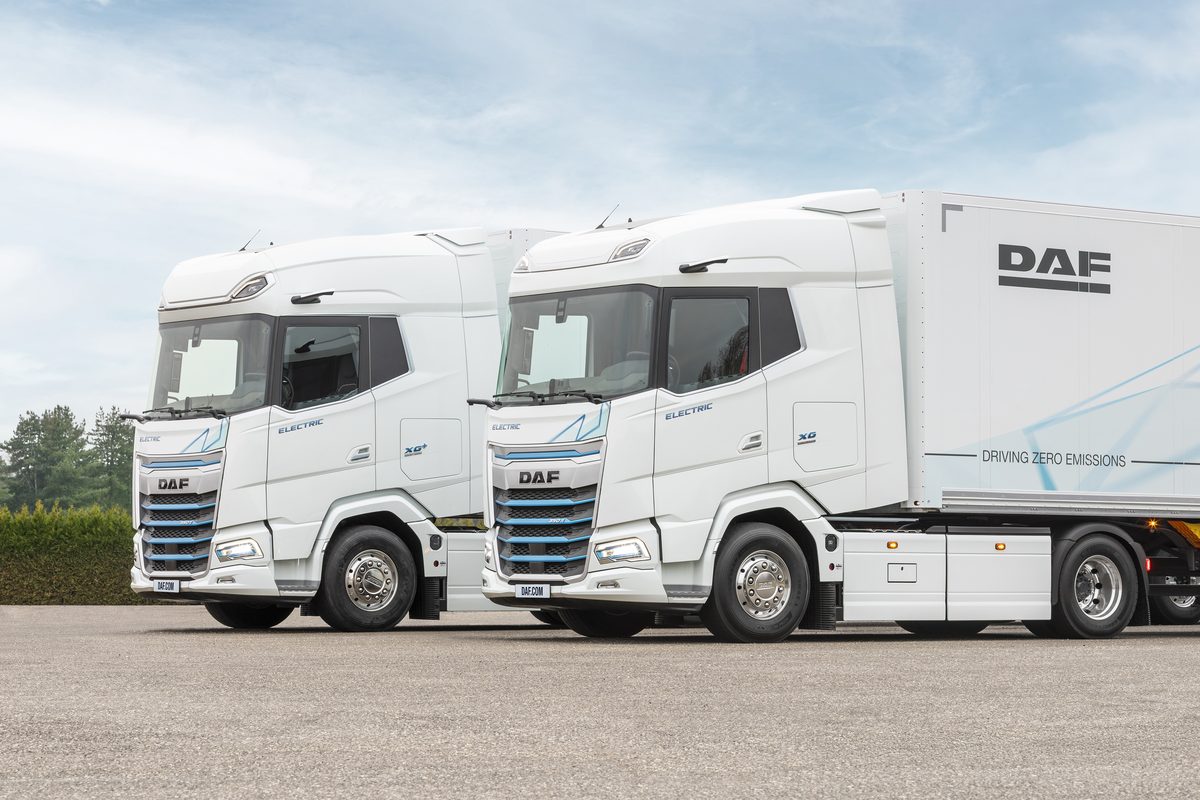

Photo: DAF Trucks
42 of 71 values are filled in.
Know one we are missing, or one that is wrong? This sheet is open for anyone to correct — type into it on eTRUCKTCO.eu, press Review & send, and confirm the e-mail. It is on all three sites the moment we have checked it.
Correct or complete this sheet
General 8 / 15
| ModelModel name as sold | XG Electric (also offered as XG+ Electric) | ↗ |
|---|---|---|
| Vehicle typee.g. tractor, rigid | Battery-electric tractor unit, long-haul | ↗ |
| Axle configuration4x2, 6x2, 6x4 … | 4x2; at IAA 2026 DAF added electric 6x2 tractors with a steered pusher or trailing axle, and 6x4 and 8x4 rigids | ↗ ↗ |
| Gross combination weightGross combination mass of the XG and XG⁺ Electric FT 4x2 tractor, per DAF's technical brochure; gross vehicle mass 20.5 t | 50 t | ↗ |
| Kerb weight, tractor | not published | |
| Payload, with a standard trailerNo figure published. DAF: up to 500 kg more than the diesel equivalent thanks to the extra 2 t allowed for electric trucks; the new battery layout (IAA 2026) adds up to 2.5 t | not published | |
| Payload if the Council position on 96/53/EC is adopted42 t for 5 axles, 44 t for 6 axles | A 5-axle combination stays at 42 t under the Council position: no change kg | ↗ |
| Drive-axle load at maximum payloadNew battery layout (IAA 2026): no battery under the cab, the front axle about 700 kg lighter, up to 2.5 t more payload, per DAF | Not overloaded at the nominal maximum payload with a standard 13.6 m semi-trailer, per the report's modelling kg | ↗ |
| Overall length, tractor | not published | |
| Overall width | not published | |
| Overall height | not published | |
| WheelbaseFT 4x2 tractor (XG and XG⁺ Electric); the FTG 6x2 has 4,150 mm and the FTN 6x2 4,000 mm | 3900 mm | ↗ |
| Turning circle with a 13.6 m semi-trailer96/53/EC: 360° between 12.5 m outer and 5.3 m inner radius | not published | |
| Top speedEU limiter is 90 | not published | |
| Clean-sheet design or converted diesel platformclean sheet / adapted platform | Adapted from the New Generation DAF diesel platform | ↗ |
Battery 6 / 9
| Battery capacity, installed (gross)The XG Electric also comes with 315 kWh (three packs) or 420 kWh (four); 210 kWh (two packs) is only offered on the XF Electric. Earlier: 'up to 525 (five packs; smaller packs from 210 kWh)' | 525 (five packs) kWh | ↗ ↗ ↗ |
|---|---|---|
| Battery capacity, usableFive packs, per DAF's XG Electric infosheet (February 2026); 370 kWh with four packs, 277 kWh with three. DAF's technical brochure (August 2026) says up to 95 % can be used on trucks with four or five battery strings, without giving kWh | 462 (88 %) kWh | ↗ ↗ |
| Cell chemistryCan be charged to 100 % every day without harming its life, per DAF | LFP (lithium iron phosphate), without cobalt or nickel | ↗ ↗ |
| Cell supplierAs electrive reports it; DAF's own material does not name the cell maker | CATL | ↗ |
| System voltageOften described as a ~900 V platform | not published | |
| Pack architectureThe new layout takes about 700 kg off the front axle, per DAF | Modular packs placed along the chassis to suit the body; at IAA 2026 a layout with no pack under the cab and up to four packs further back | ↗ ↗ |
| Battery life, ratedcycles / km / years | not published | |
| Operating temperature, battery and thermal system | not published | |
| Battery warrantyyears / km / % state of health | 8 years or 4 MWh of energy per kWh installed (about 4,000 charge cycles), with at least 70 % state of health | ↗ ↗ ↗ |
Range and energy 5 / 8
| Range, conservatively ratedOne charge. DAF gives 'over 550 km' for the XG in its technical brochure (August 2026) and at IAA; its XG infosheet and the January launch said up to (over) 500 km with five packs | over 550 (DAF's figure at IAA 2026); up to 500 before km | ↗ ↗ ↗ |
|---|---|---|
| Range, favourable conditions | not published | |
| Range, real-world European use | Over 1,000 km a day with good vehicle and charging planning | ↗ |
| Range test conditionGCW, speed, temperature, route — not published | Not stated; DAF says range depends on load, configuration, route and driving style | ↗ |
| Energy consumption, field testsDAF's typical average for its electric trucks as a whole, not specific to the XG | 0.7 to 1.2 kWh/km | ↗ |
| Test fleet mileageGermany and Austria, customer operations, mid-2026 | not published | |
| Drag coefficient (Cd)Tractor with trailer | not published | |
| Regenerative braking, peakMaximum regenerative braking of the EX-D2 drive, as electrive reports from DAF's data. One Pedal Drive offers 33, 67 or 100 % of motor power; a brake resistor takes over when the battery cannot take more (DAF) | 350 kW | ↗ |
Charging 5 / 6
| DC charge ports | CCS2, on the left or right side as ordered | ↗ ↗ |
|---|---|---|
| Max DC charge power2 × about 330 kW | up to 325 (CCS2); 150 also offered kW | ↗ ↗ ↗ |
| Charge time 20–80 %DAF's product page: 80 % in 45 minutes for a 420 kWh set. electrive reports DAF giving about two hours for five packs at 325 kW (14 January 2026), a figure not in DAF's own material | just over 45 for 10–80 % with three packs (315 kWh) min | ↗ ↗ |
| Megawatt Charging System (MCS)DAF's current option list stops at CCS2 with 150 or 325 kW; electrive: whether an MCS port will follow 'remains unclear' (14 January 2026) | No: the only truck in the report without a megawatt charging option | ↗ ↗ |
| AC charging | 22 (optional on-board charger) | ↗ ↗ |
| Vehicle-to-grid / bidirectionalyes / no | not published |
Powertrain 4 / 7
| Motor layout | PACCAR EX-D2 central drive: two electric motors with an integrated gearbox | ↗ ↗ ↗ |
|---|---|---|
| Continuous powerDAF gives 270, 310 or 350 kW without saying whether continuous or peak | not published | |
| Peak power370 to 480 hp as DAF gives them (EX-D2); DAF does not say whether these are continuous or peak ratings | 270, 310 or 350 kW | ↗ ↗ |
| Peak torqueAs DAF gives it for the EX-D2, without saying whether at the motor or the wheels; electrive: raised from 1,975 Nm late in development | 2400 Nm | ↗ ↗ |
| TransmissionMade by ZF, per electrive | 3-speed powershift, integrated with the motors | ↗ ↗ ↗ |
| Gradeability at GCW | not published | |
| Acceleration 0–80 km/h at GCW | not published |
Cab and equipment 5 / 7
| Cab type33 cm longer than the XF cab, up to 12.5 m³ inside and up to 2.2 m standing height; 80 cm beds, a 90 cm Relax Bed is new at IAA 2026 | XG or XG⁺ sleeper cab | ↗ ↗ |
|---|---|---|
| Standard equipment | Options: Digital Vision System camera mirrors, DAF Corner View and a kerb-view window; new at IAA 2026: Single Driver Luxury Package with up to 290 litres of rear-wall storage and a 90 cm Relax Bed | ↗ ↗ |
| Power take-off (ePTO)DAF's August 2026 brochure; the February infosheet lists 25 or 90 kW for the XG | 25, 60 or 100 kW (DC), with peaks of 35, 90 and 150 kW | ↗ ↗ |
| Driver positionleft, right, centre | not published | |
| Driver assistance (ADAS)AEB, lane keeping, adaptive cruise … | Meets current EU safety-assistance and cybersecurity rules; new at IAA 2026: Drowsiness and Distraction Detection (warns when the eyes are off the road for over 6 seconds) and an on-board weight monitoring system | ↗ ↗ |
| Euro NCAP ratingStars, or not tested | Not tested as an electric truck; the report notes diesel equivalents of established makes are rated 2 to 5 stars | ↗ |
| TyresMichelin, Continental and Goodyear are named as suppliers | not published |
Service and warranty 4 / 5
| Service interval | not published | |
|---|---|---|
| Vehicle warrantyDAF gives no years or kilometres here | Same programmes as every New Generation DAF truck | ↗ |
| Service network in EuropeOwn workshops, partners, mobile service | DAF dealers; DAF MultiSupport maintenance contracts; chargers and battery storage from PACCAR Power Solutions; PACCAR Financial | ↗ ↗ |
| Over-the-air updatesyes / no | Yes: the driver starts software updates from the dashboard (DAF TruckIQ Remote Software Updates) | ↗ |
| Telematics / fleet portal | PACCAR Connect (charge planning, charger map); DAF TruckIQ with PreDiagnostics and Smart Service Alerts | ↗ ↗ |
Production and market 3 / 11
| Production / assembly | Eindhoven, Netherlands; XG and XG⁺ Electric in series production since May 2026 | ↗ ↗ |
|---|---|---|
| Key suppliers | not published | |
| First European customer | Hellmold & Plank (Germany): the first XG⁺ Electric tractor | ↗ |
| HomologationEU WVTA, national, … | not published | |
| Availability in EuropeEarlier this row said the new configurations come in autumn 2026, citing DAF's IAA release; that date is not in the release as published | In series production since May 2026. The new electric 6x2, 6x4 and 8x4 versions and the new battery layout were shown at IAA 2026 without a delivery date. At IAA 2026: Hall 21, Stand B31 | ↗ ↗ ↗ |
| Trucks delivered to date | not published | |
| List price, Europe | not published | |
| Lease rateTerm and mileage | not published | |
| Maintenance costContract or estimate | not published | |
| Residual value after 5 yearsOf list price | not published | |
| Toll and CO₂ classEU CO₂ class 5 = zero-emission | not published |
Company 2 / 3
Where these figures come from
- Apollo Vehicle Safety for Transport & Environment: Comparison of electric truck models from European incumbents and new entrants (AVS377, August 2026)
- daf.com, electric trucks
- DAF Trucks, 14 September 2026: DAF presents a full suite of product innovations at the IAA 2026
- DAF Trucks, February 2026: DAF XG Electric infosheet (PDF)
- DAF Trucks, August 2026: New Generation DAF Electric, Technical Specifications (brochure HQ-EN-0826, PDF)
- DAF Trucks, September 2026: DAF XF, XG, XG⁺ Electric (product page)
- DAF Trucks, 13 January 2026: DAF introduces XG and XG⁺ Electric
- electrive, 14 January 2026: Long-haul electric mobility: DAF introduces the XG and XG+ Electric
- electrive, 6 May 2026: DAF begins series production of electric XG models
- IAA Transportation, 2026: Press conference line-up, 14–15 September (PDF)
