MAN eTGX
The new eTGX 4x2: six packs with 552 kWh, up to 660 km, up to 440 kW, and 20 to 80 % in about 30 minutes on a megawatt charger. MAN plans to start selling it in April 2027.
Battery552 kWh
Range660 (4x2, six packs); … km
DC charging750 on MCS (up to 1,00… kW
Payloadup to 25 t
Price260,000 to 320,000, in…

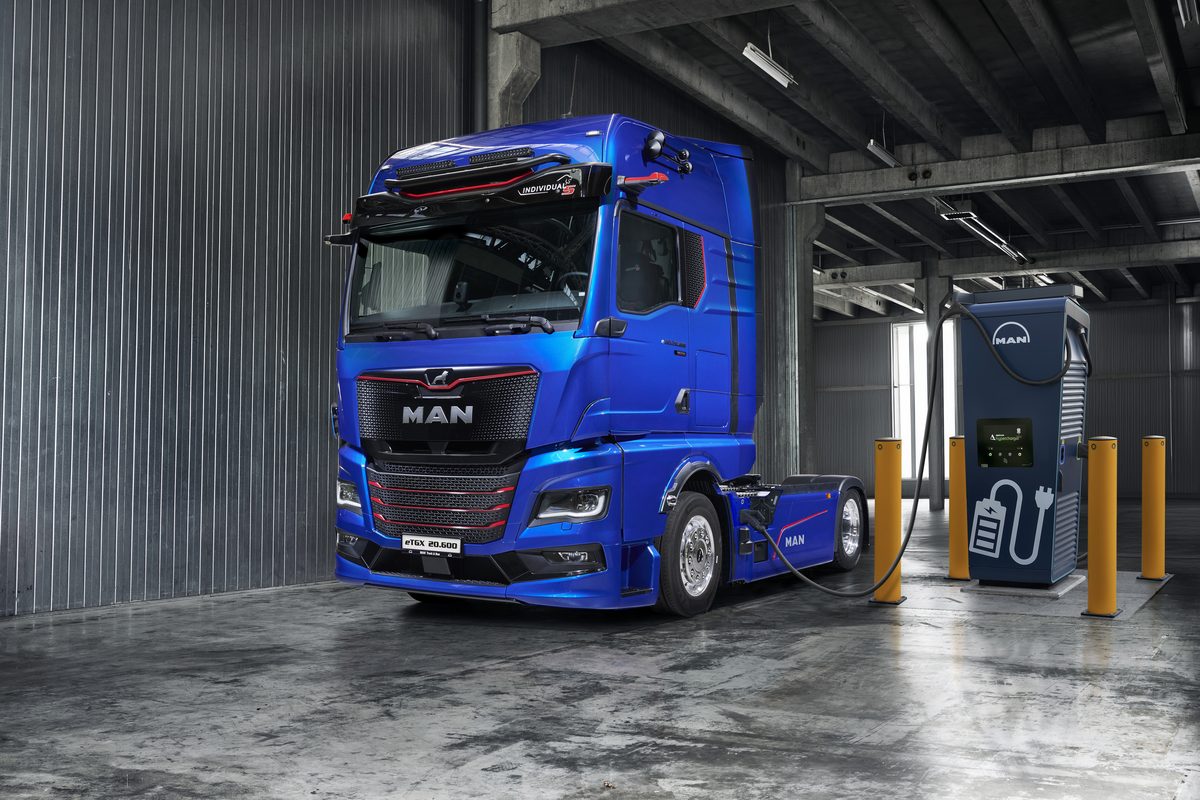

Photo: MAN Truck & BusWhat we make of it
MAN's electric flagship, rebuilt for the 2026 IAA with nickel-rich cells that add roughly 10% more energy in the same physical space. It is aimed squarely at 40-tonne long-haul work that used to be considered out of reach for a battery truck, and it is the range leader of the two trucks on this site. It is also the more expensive one by a wide margin.
| Battery capacityNet capacity, stated by MAN at the Munich press conference. The pre-Gen-2 seven-pack figure was 623 kWh; the nickel-rich cells add about 10%. | 660 kWh | official |
|---|---|---|
| Range, claimedMAN's headline figure for the Gen-2 6×2. | 720 km | official |
| Range, loadedOur estimate: claimed range less roughly 11%, the usual gap between a headline figure and full legal payload on a motorway. | 640 km | our estimate |
| Range we would plan againstWhat we would schedule against year-round. Winter, traffic and an arrival reserve included. | 500–550 km | our estimate |
| PowerMAN raised the top output to around 600 hp for the Gen-2. The lower figure is the entry drive. | 333–598 hp | reported |
| Charging power, mostMegawatt Charging System, up to 1000 A at 750 V. | 750 kW | official |
| Charge 20 to 80 %MAN quotes under 40 minutes for the seven-pack chassis at 623 kWh. The Gen-2 pack is larger, so treat 40 minutes as the floor, not the ceiling. | 40 min | official |
| Price, indicativeIndicative list price for a long-haul specification. Not a quote. Fleet pricing lands lower. | €260 000–€320 000 | our estimate |
official published by the maker · reported named trade press · our estimate ours, and said so
The range. MAN's 720 km is a real number under favourable conditions, but it is not a scheduling number. The gap between the headline and a January motorway run at 40 tonnes is large — that is what the realistic band is for. On a Belgian duty of around 400 km a day, every version here does the job on one overnight charge at the depot, which is the case that matters for cost.
The charging. The eTGX is MCS-ready from the factory since July 2026, charging at up to 750 kW. That is enough to add most of a battery over a driver's 45-minute rest. It does not mean you need it: for a depot-based fleet doing under 500 km a day, overnight DC charging at far lower power is cheaper per kWh and cheaper to install. Megawatt charging is what makes the long days possible, not what makes the business case.
The cost. The purchase price is the whole argument. At an indicative €260k–320k the eTGX costs roughly €60k–120k more than the Windrose R700, and in Belgium that gap has to come back out of fuel and toll savings. Whether it does depends on your fleet size, annual mileage and diesel price — which is exactly what the calculators on this site are for.
40 of 71 values are filled in.
Know one we are missing, or one that is wrong? This sheet is open for anyone to correct — type into it on eTRUCKTCO.eu, press Review & send, and confirm the e-mail. It is on all three sites the moment we have checked it.
Correct or complete this sheet
General 10 / 15
| ModelModel name as sold | eTGX, new generation (world premiere at IAA 2026) | ↗ ↗ |
|---|---|---|
| Vehicle typee.g. tractor, rigid | Battery-electric tractor unit, long-haul | ↗ |
| Axle configuration4x2, 6x2, 6x4 … | 4x2 (six packs); a new 6x2 with seven packs is also offered | ↗ ↗ ↗ |
| Gross combination weightUp to 50 t for the current eTGX 4x2 tractor, per MAN's technical data table. MAN gives no figure yet for the new generation; its new 6x2 tractor with seven packs takes a 15 t fifth-wheel load | 50 t | ↗ |
| Kerb weight, tractor4x2 tractor with six packs of the new battery generation, as MAN gives it (10.7 t). electrive gives about 10,600 kg for the 4x2 and 12,700 kg for the 6x2 with seven packs | 10700 kg | ↗ ↗ |
| Payload, with a standard trailerWith a standard semi-trailer, as MAN gives it: comparable to a diesel combination | up to 25 t | ↗ ↗ |
| Payload if the Council position on 96/53/EC is adopted42 t for 5 axles, 44 t for 6 axles | A 5-axle combination stays at 42 t under the Council position: no change kg | ↗ |
| Drive-axle load at maximum payloadSingle drive axle limit 11,500 kg (4x2); rear bogie 19,000 kg | Not overloaded at the nominal maximum payload with a standard 13.6 m semi-trailer, per the report's modelling kg | ↗ |
| Overall length, tractorNot published. The new generation's front is 120 mm longer, using the extra length the EU allows zero-emission trucks (MAN, 14 September 2026) | not published | |
| Overall width | not published | |
| Overall height | not published | |
| Wheelbase4x2 'ultra' tractor (low coupling height) with six packs, as MAN gives it. Other wheelbases are not published | 3750 mm | ↗ |
| Turning circle with a 13.6 m semi-trailer96/53/EC: 360° between 12.5 m outer and 5.3 m inner radius | not published | |
| Top speedEU limiter is 90 | not published | |
| Clean-sheet design or converted diesel platformclean sheet / adapted platform | Adapted TGX platform | ↗ |
Battery 4 / 9
| Battery capacity, installed (gross)Six packs of 92 kWh, per MAN. The 6x2 with seven packs: 644 kWh. The current eTGX: 534 kWh with six packs (MAN, MCS release) | 552 kWh | ↗ ↗ |
|---|---|---|
| Battery capacity, usableSix packs of 88 kWh usable: MAN now lets 95 % of the installed energy be used, ten per cent more than before. The 6x2 with seven packs: 616 kWh (electrive's figure). The current eTGX: up to 480 kWh with six packs (man.eu). This row once said 534, which was the old installed figure | 528 kWh | ↗ ↗ ↗ |
| Cell chemistryMAN credits the ten per cent gain to better cell chemistry and names NMC's high recuperation power as an advantage; the report: TRATON chooses NMC for its density, which helps keep the drive axle under its limit | NMC (nickel, manganese, cobalt), with improved cells in the new generation | ↗ ↗ ↗ |
| Cell supplierNot published; MAN assembles the packs itself in Nuremberg | not published | |
| System voltageOften described as a ~900 V platform | not published | |
| Pack architecturePack size and weight are unchanged from the previous generation, per MAN | Modular: six compact packs on the chassis (a seventh, flat pack across the frame behind the cab on the 6x2), each removable sideways | ↗ ↗ |
| Battery life, ratedcycles / km / years | not published | |
| Operating temperature, battery and thermal system | not published | |
| Battery warrantyyears / km / % state of health | not published |
Range and energy 5 / 8
| Range, conservatively ratedOne charge, MAN's maximum under the conditions below. The current eTGX: up to 570 km (4x2 tractor, six packs, 20 °C, 60 % payload, mainly motorway) | 660 (4x2, six packs); 720 (6x2, seven packs) km | ↗ ↗ ↗ |
|---|---|---|
| Range, favourable conditions | not published | |
| Range, real-world European useAs MAN gives it: 'under real conditions in typical long-haul transport' | Well over 500 km for the 4x2 and over 600 km for the 6x2, in everyday long-haul use | ↗ ↗ |
| Range test conditionMAN's conditions for the 660 km (4x2) and 720 km (6x2) figures | 100 % motorway, tyre label A, 20 °C, 60 % payload, no power take-off, new battery, 95 % depth of discharge | ↗ |
| Energy consumption, field testsNot published. MAN: the new generation uses up to 3 % less energy than the 2026 model in typical European long haul | not published | |
| Test fleet mileageCustomer operation across Europe, as man.eu gives it in September 2026 | 18 million, all MAN eTrucks together km | ↗ |
| Drag coefficient (Cd)Tractor with trailer | not published | |
| Regenerative braking, peakWith the top 440 kW motor; 420 kW with the 360 kW motor and 320 kW with the 290 kW motor. Up to 20 % more than the previous generation, per MAN | 480 kW | ↗ ↗ |
Charging 4 / 6
| DC charge portsAs MAN describes it. Earlier this row said 'MCS and CCS' (electrive.net) with MCS as standard since July 2026; MAN calls the MCS port optional | Optional MCS port at front left; extra CCS ports optional at front right (and at the rear on chassis versions) | ↗ ↗ |
|---|---|---|
| Max DC charge powerBoth figures from MAN's MCS release of 14 September 2026 | 750 on MCS (up to 1,000 A at up to 750 V); 375 on CCS kW | ↗ ↗ |
| Charge time 20–80 %New generation, per MAN. The current eTGX with six packs (534 kWh): under 30 minutes (release) or about 27 minutes (man.eu); seven packs (623 kWh, chassis): under 40 minutes to 80 % | about 30, 20 to 80 % on MCS min | ↗ ↗ ↗ ↗ |
| Megawatt Charging System (MCS)The first MCS trucks go to customers in Belgium, Denmark, Germany, the UK, Italy, the Netherlands, Norway, Spain and the Czech Republic. MAN Charge&Go gives access to tested MCS and CCS chargers | Yes: optional MCS port, in series production since July 2026 | ↗ ↗ ↗ |
| AC charging | not published | |
| Vehicle-to-grid / bidirectionalyes / no | not published |
Powertrain 2 / 7
| Motor layout | not published | |
|---|---|---|
| Continuous powerman.eu: 'up to 400 kW continuous drive and continuous brake output' for the current eTGX. MAN does not say whether the new 290, 360 and 440 kW ratings are continuous or peak | up to 400 (current eTGX) kW | ↗ |
| Peak powerNew motor range eCD290, eCD360 and eCD440, given as output without saying continuous or peak. MAN writes 'hp' but the figures are PS (440 kW = 598 PS). Its release gives '349 hp' for the 290 kW motor, which would be 394 PS. The eTGX and eTGS range starts at 333 PS (245 kW). Earlier: 'up to about 440' (eTruckTCO model page) | 440 (598 PS) for the top motor; also 360 (490 PS) and 290 kW | ↗ ↗ |
| Peak torqueAt the motor or at the wheel, say which | not published | |
| Transmissiondirect drive, 2-speed, 4-speed … | not published | |
| Gradeability at GCW | not published | |
| Acceleration 0–80 km/h at GCW | not published |
Cab and equipment 5 / 7
| Cab typeGX: the largest, for international long haul; GM: over 1.85 m standing height; GN: for occasional nights away. The new generation has a front 120 mm longer, a lower dashboard and windscreen, and a kerb-view window in the passenger door | GX, GM or GN | ↗ ↗ |
|---|---|---|
| Standard equipmentMAN Individual Lion S package also offered | 12.3-inch digital instruments; the new generation adds wireless phone charging, EasyControl buttons on the passenger door, a 230 V socket with up to 1.2 kW, a heated front mirror and a mechanical night lock | ↗ ↗ |
| Power take-off (ePTO)MAN gives no kW figure for the eTGX's electric PTO on these pages | Yes: mechanical PTOs and electrical body interfaces can be fitted | ↗ |
| Driver positionleft, right, centre | not published | |
| Driver assistance (ADAS)MAN's model-year 2026 systems for all its truck ranges; EBA Advanced already meets rules that apply from September 2028 | EBA Advanced emergency braking (works from 1 km/h, cannot be switched off for good), FrontDetection Plus, turning assistant with automatic braking, side monitoring with exit warning, driver monitoring, EfficientCruise with PredictiveDrive; OptiView camera mirrors as an option | ↗ ↗ |
| Euro NCAP ratingStars, or not tested | Not tested as an electric truck; the report notes diesel equivalents of established makes are rated 2 to 5 stars | ↗ |
| TyresMichelin, Continental and Goodyear are named as suppliers | not published |
Service and warranty 4 / 5
| Service intervalMAN: an electric truck can need less maintenance than a diesel, depending on use | Not fixed: set per truck from its battery data (MAN ServiceCare) km | ↗ |
|---|---|---|
| Vehicle warrantyyears / km | not published | |
| Service network in EuropeGoal: almost 80 % of customers within a 30-minute drive of a MAN workshop in Germany, Austria, Switzerland, France, the UK, Italy, Poland, Spain and Turkey. Battery faults are repaired rather than the whole pack replaced | MAN workshops and partners across Europe; MAN and its partners are investing about €700 million by 2030, a third of it in electric trucks and digital (high-voltage training, battery repair centres, public chargers at branches); MAN Mobile24 breakdown help | ↗ ↗ |
| Over-the-air updatesMAN names over-the-air map updates; its IAA material says nothing about other software | Yes: map data updated over the air (Connected Maps) | ↗ |
| Telematics / fleet portalCharging through MAN Charge&Go, billed monthly and visible in RIO Fleet Monitor and the MAN Driver App | RIO and MAN DigitalServices: a five-year digital pack (including MAN eManager M and Perform) comes free with every new MAN eTruck | ↗ ↗ |
Production and market 4 / 11
| Production / assemblyThe start of production of the new generation is 'subject to change', per MAN | Munich, Germany, with battery packs from MAN's Nuremberg plant; the eTGX with MCS in series production since the end of July 2026; the new generation from summer 2027 | ↗ ↗ ↗ ↗ |
|---|---|---|
| Key suppliers | not published | |
| First European customer | not published | |
| HomologationFor fuel and other dangerous goods | ADR versions (types AT and FL) available for the current eTGX | ↗ |
| Availability in EuropeEarlier (electrive.net): first deliveries in late summer 2027. MAN says the dates may change | New generation: sales launch planned for the beginning of April 2027, production from summer 2027. The current eTGX, with MCS since July 2026, is on sale and being delivered. At IAA 2026: Hall 11, Stand D08 | ↗ ↗ ↗ ↗ |
| Trucks delivered to date | not published | |
| List price, Europe | 260,000 to 320,000, indicative for a long-haul specification (our estimate, not a quote) € excl. VAT | ↗ |
| Lease rateNo rate published. MAN FinancialServices financed more than half of the MAN eTrucks newly registered in the first half of 2026 (MAN, 14 September 2026) | not published | |
| Maintenance costContract or estimate | not published | |
| Residual value after 5 yearsOf list price | not published | |
| Toll and CO₂ classEU CO₂ class 5 = zero-emission | not published |
Company 2 / 3
Where these figures come from
- Apollo Vehicle Safety for Transport & Environment: Comparison of electric truck models from European incumbents and new entrants (AVS377, August 2026)
- man.eu
- eTruckTCO model page, MAN eTGX (figures with confidence labels)
- MAN Truck & Bus, 14 September 2026: IAA Transportation 2026 press kit
- electrive, 14 September 2026: New-generation MAN eTGX unveiled with 720 km range (Florian Treiß)
- electrive.net, 14 September 2026: MAN eTGX, neue Generation (Florian Treiß)
- MAN Truck & Bus, 14 September 2026: World premiere at the IAA: MAN eTGX with greater range, efficiency and safety (press release, PDF)
- MAN Truck & Bus, 14 September 2026: MAN starts series production of MCS-ready eTrucks (press release, PDF)
- MAN Truck & Bus, 14 September 2026: More efficiency, availability and safety: MAN truck innovations at IAA 2026 (press release, PDF)
- MAN Truck & Bus, 14 September 2026: MAN partners step up investment in service network (press release, PDF)
- MAN Truck & Bus, September 2026: The new MAN eTGX (product page, with range conditions and launch dates)
- MAN Truck & Bus, September 2026: The MAN eTGX, overview and technical data (product page, current generation)
- MAN Truck & Bus, September 2026: The new MAN eTGX (brochure 09/2026, PDF)
- IAA Transportation, 2026: Press conference line-up, 14–15 September (PDF)
