DAF XB Electric
DAF's smallest electric truck, a 4x2 rigid of 12, 16 or 19 t with 141 to 282 kWh of LFP batteries and up to 350 km claimed. For a cost comparison with a diesel XB: DAF gives an average use of 0.7 to 1.2 kWh per km across its electric range, 20 to 80 % in 40 to 70 minutes at 150 kW DC or overnight on 22 kW AC, and an 8-year battery warranty. What is still missing: a price, a lease rate and a consumption figure for the XB alone.
Battery141–282 kWh
Range350 km
DC charging150 kW

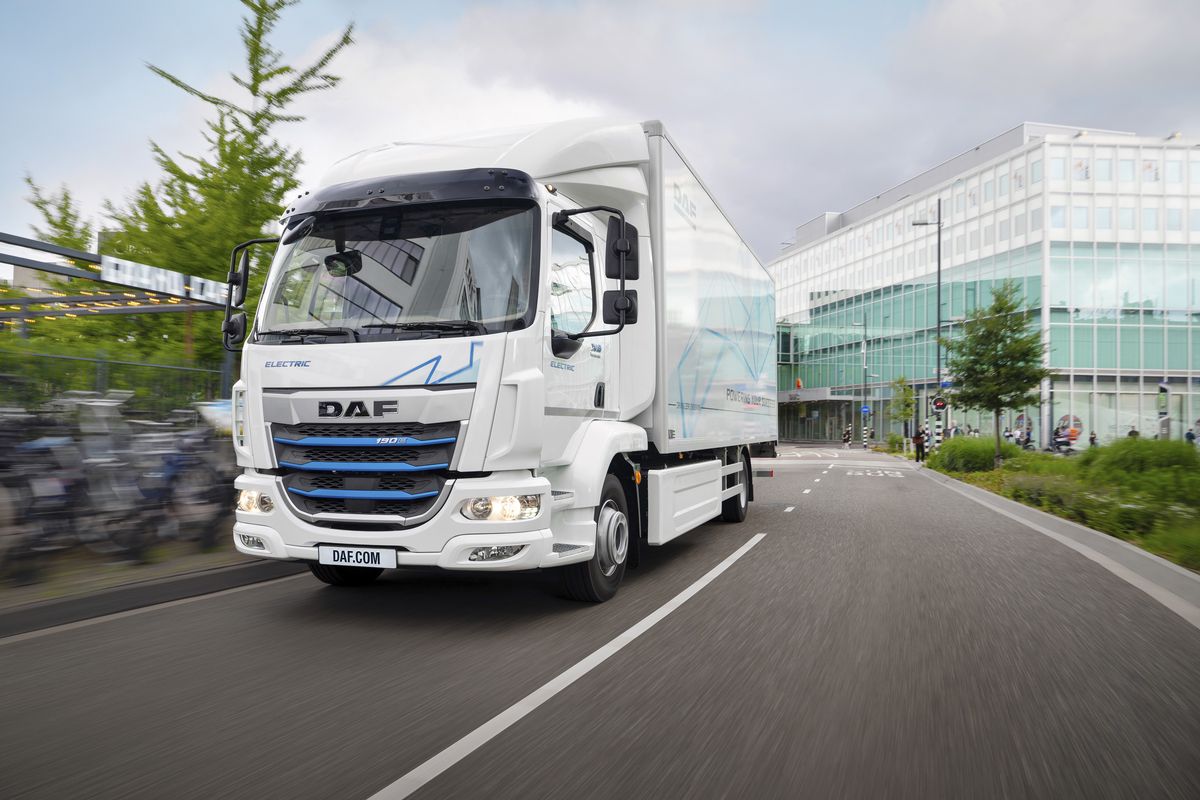

Photo: DAF Trucks
42 of 77 values are filled in.
Know one we are missing, or one that is wrong? This sheet is open for anyone to correct — type into it on eTRUCKTCO.eu, press Review & send, and confirm the e-mail. It is on all three sites the moment we have checked it.
Correct or complete this sheet
General 12 / 19
| ModelModel name as sold; the number is the motor power in kW | XB Electric: XB 120 (12 t) and XB 190 (16 and 19 t) | ↗ ↗ ↗ ↗ |
|---|---|---|
| Vehicle typeNo tractor version | Battery-electric rigid truck for city and regional distribution | ↗ ↗ ↗ |
| Axle configurationFA 4x2 rigid in all three weights | 4x2 | ↗ ↗ |
| Gross combination weightEqual to the truck's own gross weight: the specification sheets rate the driveline for no trailer on top | 12–19 t | ↗ ↗ |
| Gross vehicle weightRigid, not a tractor: 12,000, 16,000 or 19,000 kg | 12000–19000 kg | ↗ ↗ ↗ ↗ |
| Kerb weightRigid chassis with day cab, standard specification with two battery packs, no body, ±3 %: 12 t 5,876–5,934 kg, 19 t 7,345–7,588 kg, depending on wheelbase | 5876–7588 kg | ↗ ↗ |
| PayloadRigid, no trailer. Body plus load (gross carrying capacity): 6,066–6,124 kg on the 12 t, 11,412–11,655 kg on the 19 t | not published | |
| Payload if the Council position on 96/53/EC is adopted | not published | |
| Front / rear axle design load12 t. The 16 t: 6,000 / 10,500 kg; the 19 t: 7,500 / 13,000 kg | 4500 / 8500 kg | ↗ ↗ ↗ |
| Drive-axle load at maximum payloadNot published | not published | |
| Overall lengthRigid chassis with cab, without body: 12 t 8,020–9,400 mm (wheelbase 4.30–5.70 m), 19 t 7,820–11,290 mm (wheelbase 4.45–6.90 m) | 7820–11290 mm | ↗ ↗ |
| Overall widthNot published as one figure: the cab is 2,130 mm wide; 2.33 m (12 t) and 2.47 m (19 t) over the rear wheels; the 16 t with H-type packs can be built 2,301 mm wide across the packs (2,385 mm with side covers) | not published | |
| Overall heightNot published as one figure | not published | |
| Wheelbase12 t 3.55–5.70 m, 16 t 3.80–6.70 m, 19 t 3.75–6.90 m (August 2026 brochure). The 2025 specification sheets start at 4.30 m (12 t) and 4.45 m (19 t) | 3550–6900 mm | ↗ |
| Turning radius, minimumHalf of the 13.62 m turning circle between kerbs of the 12 t on a 4.30 m wheelbase (2025 specification sheet); the 19 t on its longest wheelbase needs a 22.43 m circle | 6.8 m | ↗ ↗ |
| Top speedNot published | not published | |
| Suspension | Parabolic leaf springs at the front; at the rear leaf springs on the 12 t (air optional), electronically controlled air suspension on the 19 t | ↗ ↗ |
| Fifth wheelRigid truck; no fifth wheel | not published | |
| Clean-sheet electric design or converted diesel platform | Built on the diesel XB, with the same electrical architecture as the XD and XF Electric | ↗ ↗ |
Battery 5 / 9
| Battery capacity, installed (gross)One pack of 141 kWh (12 t only), or two packs making 210 or 282 kWh | 141–282 kWh | ↗ ↗ ↗ |
|---|---|---|
| Battery capacity, usable88 % of the installed capacity: 124, 185 or 248 kWh | 124–248 kWh | ↗ |
| Cell chemistryLFP, NMC … | LFP (lithium iron phosphate), cobalt-free | ↗ ↗ ↗ |
| Cell supplierNot published | not published | |
| System voltageNot published; DC fast charging runs at 650 V | not published | |
| Pack architectureH-type or C-type packs on the specification sheets | Cell-to-pack LFP packs on the chassis; one side can be kept free for body equipment | ↗ ↗ ↗ |
| Battery life, ratedNot published as a rated life; DAF equates its warranty to 4,000 charging cycles | not published | |
| Operating temperature, battery and thermal system | not published | |
| Battery warrantyDAF equates 4 MWh per kWh to 4,000 charging cycles | 8 years or 4 MWh per kWh of installed capacity, at 70 % state of health | ↗ ↗ |
Range and energy 4 / 8
| Range, as claimed'More than 350 km' in DAF's August 2026 brochure, 'up to 350 km' on the product page and in the XB brochure (for light work); the infosheet says up to 320 km | 350 km | ↗ ↗ ↗ |
|---|---|---|
| Range, favourable conditionsNot published | not published | |
| Range, real-worldDAF's own figure for a use case, not a measured test | Up to 200 km for a typical two-pack XB Electric in intensive city use | ↗ |
| Range test conditionNot published; DAF says range depends on configuration, route and driving style | not published | |
| Energy consumptionDAF's average 'for the most typical situations' across its whole electric range, XB to XG+, not a figure for the XB alone | 0.7–1.2 kWh/km | ↗ |
| Test fleet mileage | not published | |
| Drag coefficient (Cd) | not published | |
| Regenerative braking, peakDAF: the most braking power of E-Drive Control equals the rated motor power, 120 or 190 kW | 120–190 kW | ↗ |
Charging 5 / 6
| DC charge ports | Combined Charging System (CCS), for AC and DC | ↗ ↗ |
|---|---|---|
| Max DC charge powerAt 650 V | 150 kW | ↗ ↗ ↗ |
| Charge time 20–80 %At 150 kW DC, depending on the battery size | 40–70 min | ↗ |
| Megawatt Charging System (MCS)Not among the charging options DAF lists | Not offered | ↗ |
| AC charging | Up to 22 kW with the on-board charger | ↗ ↗ |
| Vehicle-to-grid / bidirectionalNot published | not published |
Powertrain 4 / 7
| Motor layout | One central permanent-magnet motor driving the rear axle: PACCAR EX-M1 (12 t) or EX-M2 (16 and 19 t) | ↗ ↗ |
|---|---|---|
| Continuous powerNominal power: 120 kW (EX-M1, 12 t) or 190 kW (EX-M2, 16 and 19 t) | 120–190 kW | ↗ ↗ ↗ |
| Peak powerNot published | not published | |
| Peak torque2,600 Nm with 120 kW, 3,500 Nm with 190 kW. Nominal torque: 950 and 1,850 Nm on the product page, 1,000 and 2,000 Nm in the XB brochure | 2600–3500 Nm | ↗ ↗ |
| TransmissionRear axle ratio 4.88 (12 t), 4.11 (16 t), 5.57 (19 t) | Direct drive | ↗ ↗ ↗ ↗ ↗ |
| Gradeability, maximumNot published | not published | |
| Acceleration 0–80 km/h at GCW | not published |
Safety 1 / 3
| Truck safety ratingNo Euro NCAP truck rating published. The XB brochure says all XB models (7.5, 12 and 16 t) have three stars in London's Direct Vision Standard, without saying whether that includes the electric version | not published | |
|---|---|---|
| Driver assistance (ADAS)As listed on the product page; the 2025 specification sheets give speed-limit recognition, drowsiness detection and Drive-off Assist as standard | Emergency braking from up to 80 km/h, Drive-off Assist, DAF Turn Assist for cyclists and blind spots, drowsiness detection, speed-limit information, lane-departure warning, event data recorder | ↗ ↗ |
| Braking and stabilityNot published in the sources used | not published |
Cab and equipment 5 / 5
| Cab typeThe 12 t has 17.5-inch wheels and a single entry step | Day Cab or Extended Day Cab | ↗ ↗ ↗ |
|---|---|---|
| Standard equipment12 t specification sheet and infosheet; a kerb-view window is optional | Air-suspended driver seat, rear-view camera, front-view mirror, heated and electrically adjusted mirrors, digital instrument panel | ↗ ↗ |
| Power take-off (ePTO)DAF's August 2026 brochure lists 25, 60 or 100 kW for the XB | Optional: 25 or 90 kW | ↗ ↗ |
| Driver position | Left-hand drive; right-hand drive optional | ↗ ↗ |
| TyresStandard sizes | 245/70 R17.5 on the 12 t; 315/70 R22.5 on the 19 t | ↗ ↗ |
Service and warranty 2 / 5
| Service intervalNot published | not published | |
|---|---|---|
| Vehicle warrantyNot in the XB specification sheets. DAF says its electric trucks get the same warranty programmes as its other trucks | not published | |
| Service network in Europe | DAF dealer network, with DAF International Truck Service (ITS) roadside help around the clock across Europe | ↗ |
| Over-the-air updatesDAF's IAA 2026 release announces remote software updates for its trucks without naming models | not published | |
| Telematics / fleet portalListed as an option on the infosheet | PACCAR Connect | ↗ ↗ |
Production and market 2 / 12
| Production / assemblyNot stated in the DAF documents used | not published | |
|---|---|---|
| Key suppliersMotors from PACCAR, DAF's parent company | not published | |
| First customer | not published | |
| Homologation in the EUEU WVTA, national, … | not published | |
| Availability in EuropeWhat is sold differs per country, according to DAF | On sale in 12, 16 and 19 t versions | ↗ ↗ |
| Trucks delivered to dateNot published | not published | |
| List price, EuropeNot published | not published | |
| Lease rate | not published | |
| Maintenance cost | not published | |
| Residual value after 5 years | not published | |
| Toll and CO₂ classEU CO₂ class 5 = zero-emission | not published | |
| IAA Transportation 2026Not a premiere. electrive's preview names the XB Electric among the trucks DAF brings | Hall 21, Stand B31, as the city truck in DAF's full electric line-up | ↗ ↗ ↗ |
Company 2 / 3
Where these figures come from
- IAA Transportation newsroom, 19 August 2026: DAF and Einride to Jointly Develop SAE Level 4 Autonomous Electric Trucks
- DAF Trucks, 14 September 2026: DAF presents a full suite of product innovations at the IAA 2026
- DAF Trucks: New Generation DAF Electric — Technical Specifications (brochure HQ-EN-0826, August 2026)
- DAF Trucks: New Generation DAF XB brochure (HQ-EN-0826, August 2026)
- DAF Trucks: DAF XB Electric — Configuration and options (infosheet)
- DAF Trucks: New Generation DAF XB Electric (product page)
- DAF Trucks: specification sheet XB 120 FA 4x2 Rigid, 12t Electric (991F3800AAAA, 10 July 2025)
- DAF Trucks: specification sheet XB 190 FA 4x2 Rigid, 16t Electric (991F4800AAAA, 10 July 2025)
- DAF Trucks: specification sheet XB 190 FA 4x2 Rigid, 19t Electric (991F5800AAAA, 10 July 2025)
- electrive, 3 September 2026: Preview: Electric truck innovations at IAA Transportation (Cora Werwitzke)
- IAA Transportation 2026: press conference line-up, 14–15 September (DAF Trucks NV: Hall 21, B31)
