DAF XD Electric
DAF's electric distribution truck, in series production in Eindhoven since 2025: 170 to 350 kW, 210 to 525 kWh of LFP batteries with an 8-year warranty, more than 550 km claimed with the largest battery. For a cost comparison with a diesel, DAF gives an average use of 0.7 to 1.2 kWh per km across its electric range and DC charging at 150 kW as standard or 325 kW as an option. What is still missing: a price, a lease rate, and a consumption figure for the XD alone at a given weight.
Battery210–525 kWh
Range550 km
DC charging325 kW

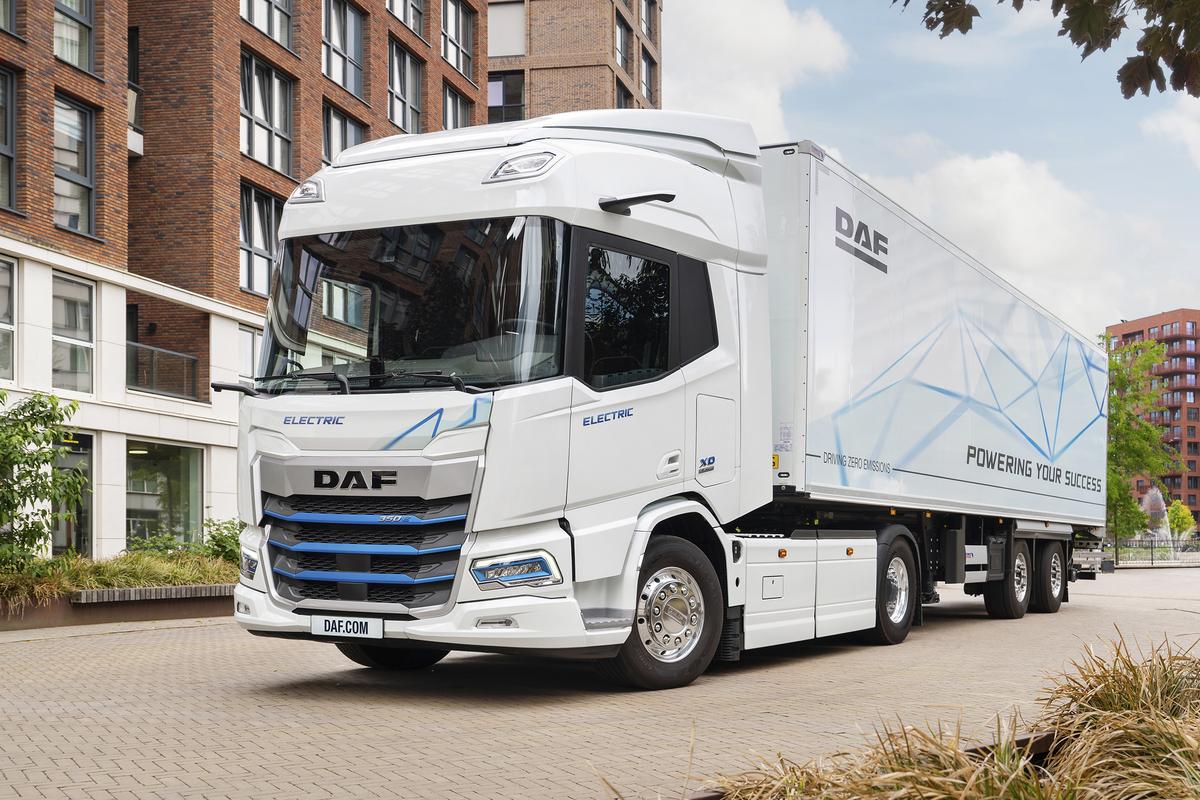

Photo: DAF Trucks
46 of 77 values are filled in.
Know one we are missing, or one that is wrong? This sheet is open for anyone to correct — type into it on eTRUCKTCO.eu, press Review & send, and confirm the e-mail. It is on all three sites the moment we have checked it.
Correct or complete this sheet
General 14 / 19
| ModelModel name as sold; the number is the motor power in kW. Voted 'International Truck of the Year 2026' together with the XF Electric | XD Electric: XD 170, 220 and 270 with the PACCAR EX-D1 motor, XD 270, 310 and 350 with the PACCAR EX-D2 | ↗ ↗ ↗ ↗ |
|---|---|---|
| Vehicle typeTractors: FT 4x2, FTG and FTN 6x2. Rigids: FA 4x2, FAS, FAG and FAN 6x2, FAT 6x4 (construction version XDC), FAW 8x4 | Battery-electric distribution truck: tractor unit or rigid | ↗ ↗ ↗ |
| Axle configurationThe rows labelled 'tractor' are for the 4x2 tractor. Until early 2026 DAF sold its electric trucks mainly as 4x2; 6x2 tractors and 6x4 and 8x4 rigids were added in early 2026 | 4x2 | ↗ ↗ ↗ |
| Gross combination weightFor the XD tractors in DAF's August 2026 brochure. The July 2025 specification sheet of the XD 310 FT still gives 42,000 kg. The EX-D1 motors are meant for solo trucks up to 29 t | 50 t | ↗ ↗ |
| Gross vehicle weight, tractorFT 4x2 in DAF's August 2026 brochure; the July 2025 specification sheet gives 20,500 kg. Rigids 21.5 t (4x2) to 39 t (8x4) | 21500 kg | ↗ |
| Kerb weight, tractorXD 310 FT 4x2 in standard specification with four battery packs, tolerance ±3 %: 9,745 kg with day cab, 9,846 kg sleeper cab, 9,876 kg sleeper high cab | 9745–9876 kg | ↗ |
| Payload, with a standard trailerNot published. DAF says its electric XD, XF, XG and XG+ carry up to 500 kg more than the same diesel truck, and that a battery set-up shown at IAA 2026 (no pack under the cab, up to four packs further back) adds up to 2.5 t | not published | |
| Payload if the Council position on 96/53/EC is adopted | not published | |
| Front / rear axle design loadXD 310 FT; a 9 t front axle is optional on the specification sheet, a 10 t front axle on the infosheet | 8000 / 13000 kg | ↗ ↗ |
| Drive-axle load at maximum payloadNot published; the rear axle of the XD 310 FT is rated for 13,000 kg | not published | |
| Overall length, tractorXD 310 FT 4x2 with 3.90 m wheelbase | 6420 mm | ↗ |
| Overall widthNot published as one figure: the specification sheet gives a cab width of 2,500 mm and 2.48 m over the rear wheels | not published | |
| Overall heightNot published as one figure; it depends on the cab (day, sleeper, sleeper high) and the roof deflector | not published | |
| WheelbaseFT 4x2 tractor. 6x2 tractors 4.00 and 4.15 m; rigids 3.80 to 6.10 m depending on axle layout | 3900 mm | ↗ ↗ |
| Turning radius, minimumHalf of the turning circle DAF gives for the XD 310 FT: 13.75 m between kerbs (15.14 m between walls) | 6.9 m | ↗ |
| Top speedSpeed limiter set at 85 or 90 km/h | 90 km/h | ↗ |
| SuspensionXD 310 FT | Parabolic leaf springs at the front (air springs optional), air suspension at the rear | ↗ |
| Fifth wheelXD 310 FT standard; other makes and heights optional | JOST JSK42, cast iron, 150 + 40 mm | ↗ |
| Clean-sheet electric design or converted diesel platform | Built on the diesel XD platform: the New Generation DAF XD with an electric driveline, the battery packs on the chassis | ↗ ↗ |
Battery 5 / 9
| Battery capacity, installed (gross)Two to five packs: 210, 315, 420 or 525 kWh. Two packs only on the FA 4x2 rigid; the FTG 6x2 tractor takes three packs only (August 2026 brochure). The infosheet pairs the EX-D2 motor with at least three packs, and the 310 and 350 kW versions with at least four | 210–525 kWh | ↗ ↗ ↗ |
|---|---|---|
| Battery capacity, usable88 % of the installed capacity: 185, 277, 370 or 462 kWh (infosheet). DAF's August 2026 brochure says up to 95 % can be used with four or five packs | 185–462 kWh | ↗ ↗ |
| Cell chemistryLFP, NMC … | LFP (lithium iron phosphate), free of cobalt and nickel | ↗ ↗ |
| Cell supplierNot published | not published | |
| System voltageNot published; the ePTO socket runs at 650 V DC | not published | |
| Pack architectureThe set-up without a pack under the cab was introduced at IAA 2026 | Modular packs on the chassis frame; positions can be moved to keep one side free for a body, or (new) all packs behind the cab | ↗ ↗ ↗ |
| Battery life, ratedNot published as a rated life. DAF says the packs can be charged to 100 % every day without shortening their life, and equates its warranty to 4,000 charging cycles | not published | |
| Operating temperature, battery and thermal system | not published | |
| Battery warrantyDAF equates 4 MWh per kWh to 4,000 charging cycles | 8 years or 4 MWh per kWh of installed capacity, at 70 % state of health | ↗ ↗ ↗ |
Range and energy 3 / 8
| Range, as claimed'Over 550 km' on one charge in DAF's August 2026 technical brochure and IAA release. DAF's XD brochure of the same month says 500+ km per charge and up to 1,000 km a day, depending on the battery; the 2025 launch release and the infosheet said more than 500 km, with five packs | 550 km | ↗ ↗ ↗ |
|---|---|---|
| Range, favourable conditionsNot published for one charge. DAF says up to 1,000 electric km a day are possible with charging planned in | not published | |
| Range, real-world | not published | |
| Range test conditionNot published; DAF says range depends on load, configuration, route and driving style | not published | |
| Energy consumptionDAF's average 'for the most typical situations' across its whole electric range, XB to XG+, not a figure for the XD alone | 0.7–1.2 kWh/km | ↗ |
| Test fleet mileage | not published | |
| Drag coefficient (Cd)Not published | not published | |
| Regenerative braking, peak270 kW with the EX-D1 motors, 350 kW with the EX-D2 | 270–350 kW | ↗ |
Charging 4 / 6
| DC charge portsSocket on the left or right side, to choose | CCS2 | ↗ |
|---|---|---|
| Max DC charge power150 kW DC is standard on the XD 310 FT; 325 kW is an option. The choices: 150 or 325 kW DC, each with or without 22 kW AC (August 2026 brochure) | 325 kW | ↗ ↗ ↗ |
| Charge time 20–80 %Not published for 20–80 %. DAF: 0 to 80 % in just over 45 minutes for a three-pack battery at 325 kW; the largest battery from empty to full in under 2 hours | not published | |
| Megawatt Charging System (MCS)Not among the charging options DAF lists | Not offered | ↗ |
| AC charging | Up to 22 kW with the optional on-board charger | ↗ ↗ |
| Vehicle-to-grid / bidirectionalNot published | not published |
Powertrain 4 / 7
| Motor layoutAt part load only one of the two motors runs | Central drive unit with two permanent-magnet motors and an integrated gearbox, driving a conventional rear axle | ↗ ↗ |
|---|---|---|
| Continuous powerDAF's power ratings: EX-D1 170, 220 or 270 kW; EX-D2 270, 310 or 350 kW (230–480 hp). In DAF's August 2026 brochure the EX-D1 is not offered on the tractors or the 8x4 rigid, so the FT 4x2 tractor has the EX-D2 | 170–350 kW | ↗ ↗ |
| Peak powerNot published separately | not published | |
| Peak torque1,500 Nm for every EX-D1, 2,400 Nm for every EX-D2 | 1500–2400 Nm | ↗ |
| TransmissionRear axle ratio 2.38 on the XD 310 FT | Integrated three-speed powershift with two planetary gear sets | ↗ ↗ ↗ |
| Gradeability, maximumNot published | not published | |
| Acceleration 0–80 km/h at GCW | not published |
Safety 3 / 3
| Truck safety ratingNo Euro NCAP truck rating published. The XD brochure gives the XD the maximum five stars in London's Direct Vision Standard | Five stars in Transport for London's Direct Vision Standard, when specified for it | ↗ ↗ ↗ |
|---|---|---|
| Driver assistance (ADAS)Standard on the XD 310 FT. New at IAA 2026 for DAF trucks: drowsiness and distraction detection (warns when the driver's eyes are off the road for more than 6 seconds) and an on-board weight monitoring system | Adaptive cruise control with forward-collision warning and emergency braking, lane-departure warning, stability control, DAF Side & Turn Assist; predictive cruise control optional | ↗ ↗ |
| Braking and stabilityThe brake resistor is fitted on tractor combinations. The August 2026 XD brochure names an electronic park brake, a low-speed trailer brake for coupling and Park Brake Assist as new XD features, without saying which apply to the Electric | Disc brakes front and rear with electronic braking (EBS), stability control; a brake resistor handles long downhill braking when the battery cannot take the energy | ↗ ↗ |
Cab and equipment 4 / 5
| Cab typeLow-mounted, with low window lines for direct view | Day Cab, Sleeper Cab or Sleeper High Cab | ↗ ↗ |
|---|---|---|
| Standard equipmentXD 310 FT specification sheet | LED headlights, DAF Corner View, automatic air conditioning, water-heated auxiliary cab heater, PACCAR Connect; camera mirrors (DAF Digital Vision System) and a kerb-view window optional | ↗ |
| Power take-off (ePTO)DAF's August 2026 brochure lists 25, 60 or 100 kW (peak 35, 90 or 150 kW) for its electric range | Optional: 25 or 90 kW, 650 V DC | ↗ ↗ ↗ |
| Driver positionleft, right, centre | not published | |
| TyresXD 310 FT standard | 315/70 R22.5 front and rear | ↗ |
Service and warranty 4 / 5
| Service intervalNot published | not published | |
|---|---|---|
| Vehicle warrantyStandard warranty on the XD 310 FT specification sheet; DAF says its electric trucks get the same warranty programmes as its other trucks | 1 year complete vehicle, 2nd year driveline, 1 year breakdown cover | ↗ ↗ |
| Service network in Europe | DAF dealer network, more than 1,000 dealers and service points worldwide, with DAF International Truck Service (ITS) roadside help around the clock in 10 languages | ↗ ↗ ↗ |
| Over-the-air updatesyes / no | Yes: remote software updates, started by the driver from the dashboard | ↗ |
| Telematics / fleet portal | PACCAR Connect, standard on every XD, with DAF TruckIQ services (remote software updates, PreDiagnostics, Smart Service Alerts) | ↗ ↗ ↗ |
Production and market 3 / 12
| Production / assemblyAll versions, including the 6x2, 6x4 and 8x4, are built in Eindhoven | Eindhoven, the Netherlands; in series production since September 2025 | ↗ ↗ |
|---|---|---|
| Key suppliersMotors from PACCAR, DAF's parent company | not published | |
| First customerNot published | not published | |
| Homologation in the EUEU WVTA, national, … | not published | |
| Availability in Europe | On sale; built in series since September 2025 | ↗ |
| Trucks delivered to dateNot published | not published | |
| List price, EuropeNot published | not published | |
| Lease rate | not published | |
| Maintenance cost | not published | |
| Residual value after 5 years | not published | |
| Toll and CO₂ classEU CO₂ class 5 = zero-emission | not published | |
| IAA Transportation 2026Not a premiere. electrive's preview names the XD and XF as the 'International Truck of the Year 2026' on the stand. Electric axle layouts DAF presents at the show: 6x2 tractors with steered pusher or trailing axle, a 6x2 rigid with 10 t trailing axle, 6x4 and 8x4 rigids, a swap-body (BDF) chassis | Hall 21, Stand B31, as part of DAF's full electric line-up for city, regional and long-haul work | ↗ ↗ ↗ |
Company 2 / 3
Where these figures come from
- IAA Transportation newsroom, 19 August 2026: DAF and Einride to Jointly Develop SAE Level 4 Autonomous Electric Trucks
- IAA Transportation newsroom, 4 February 2026: DAF Expands Electric Truck Portfolio – New Axle Configurations for Construction and Specialized Applications
- DAF Trucks, 14 September 2026: DAF presents a full suite of product innovations at the IAA 2026
- DAF Trucks: New Generation DAF Electric — Technical Specifications (brochure HQ-EN-0826, August 2026)
- DAF Trucks, 19 September 2025: New Generation DAF XD and XF Electric are setting the standard
- DAF Trucks, 19 November 2025: DAF XD and XF Electric elected 'International Truck of the Year 2026'
- DAF Trucks: New Generation DAF XD Electric (product page)
- DAF Trucks: DAF XD Electric — Configuration and options (infosheet)
- DAF Trucks: specification sheet XD 310 FT 4x2 Tractor, Electric (991G0100AAAA, 10 July 2025)
- electrive, 3 September 2026: Preview: Electric truck innovations at IAA Transportation (Cora Werwitzke)
- IAA Transportation 2026: press conference line-up, 14–15 September (DAF Trucks NV: Hall 21, B31)
- DAF on this site (IAA 2026 maker sheet)
- DAF Trucks: New Generation DAF XD brochure (HQ-EN-0826, August 2026)
