Kempower Mega Satellite Flex
Kempower's megawatt dispenser: one CCS outlet (560 kW, 700 A) and one MCS outlet (1.2 MW, 1,500 A) on the same Satellite, fed by Kempower Power Units, on sale in Europe since July 2026 and on the stand in Hall 13.

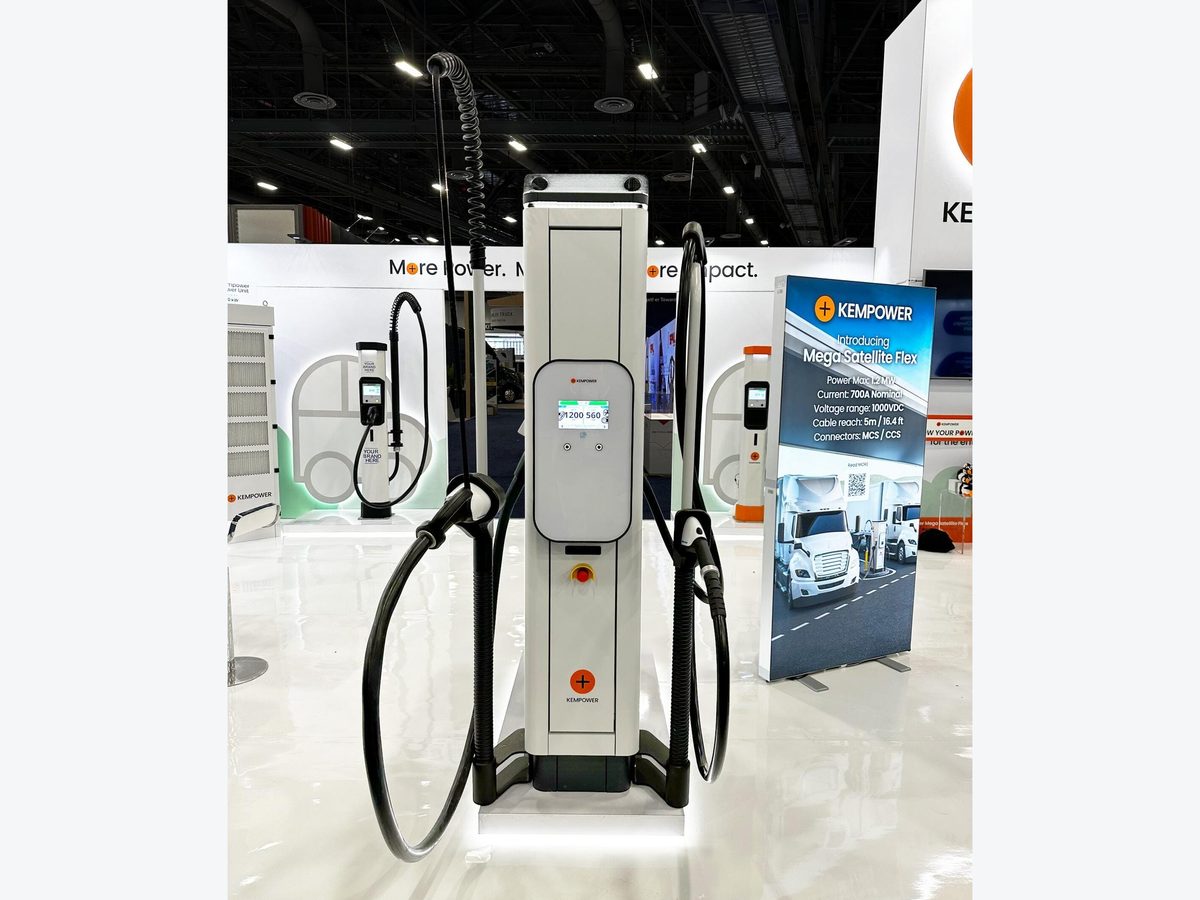

Photo: Kempower
23 of 43 values are filled in.
Know one we are missing, or one that is wrong? This sheet is open for anyone to correct — type into it on eTRUCKTCO.eu, press Review & send, and confirm the e-mail. It is on all three sites the moment we have checked it.
Correct or complete this sheet
Company 4 / 4
IAA Transportation 2026 4 / 5
| Hall and stande.g. Hall 13, Stand C26 | Hall 13, Stand C26 | ↗ ↗ |
|---|---|---|
| Premiered in HanoverWorld or European premieres on the stand | not published | |
| Charging products on the standModels shown | Shown on the stand as "the latest addition to our product family", next to the Satellite, Liquid-Cooled Satellite, Power Unit and Control Unit | ↗ |
| Announcements at the showPartnerships, orders, launch dates | Talk "The Next Phase of Truck Charging: Insights from Real-World Operations" by Antti Vuola, VP of Product, on the Industry Stage (Hall 13), 17 September 2026, 14:00–14:45 | ↗ |
| Who to talk to on the standAs listed on Kempower's profile in the organiser's exhibitor directory | Kris Meskens, Sales Manager Belgium & Luxembourg; Han Dix, Country Manager Benelux; Stanislaus Gierszewski, Sales Manager Transport & Logistics DACH | ↗ |
The charging system 12 / 19
| ModelProduct name as sold | Mega Satellite Flex | ↗ |
|---|---|---|
| ArchitectureSplit DC (power cabinet + dispensers) or all-in-one | Split DC dispenser with one CCS and one MCS outlet, fed by Kempower Power Units, new or already installed | ↗ ↗ |
| Power per cabinet or unitFed by Kempower Power Units, new or already installed: one Power Unit gives up to 600 kW, two in parallel up to 1,200 kW, the dispenser's MCS maximum | 1200 kW | ↗ ↗ |
| Power-sharing stepSmallest block of power that can move between outlets | not published | |
| Outlets per power unitOne CCS and one MCS connector on the dispenser; Kempower does not say whether both can charge at the same time | 2 | ↗ ↗ |
| Max power per CCS outlet | 560 kW | ↗ ↗ ↗ |
| Max current, CCS | 700 A | ↗ ↗ ↗ |
| Megawatt Charging System (MCS)available / planned / no | available | ↗ |
| Max power per MCS outlet | 1200 kW | ↗ ↗ ↗ |
| Max current, MCSThe MCS-only Mega Satellite is rated 1,500 A continuous at +40 °C; no temperature condition is given for the Flex. The MCS connector allows up to 3,000 A | 1500 A | ↗ ↗ ↗ |
| Output voltage rangeDesigned for up to 1,250 V; the full range is to come in later releases | 150–1000 V | ↗ ↗ |
| Efficiency, grid to plugAs published by the maker | not published | |
| Loss grid to battery, overnight depotAs assumed in the eTRUCKTCO calculators | Not modelled separately; the calculators use ≈ 8 % for the Kempower split-DC family % | ↗ |
| CoolingLiquid-cooled cables / air | not published | |
| Cable length16.4 ft and 8.86 ft | CCS 5, MCS 2.7 m | ↗ ↗ |
| Protection and temperature rangeIP rating, °C | not published | |
| Noise | not published | |
| Battery bufferBuilt-in storage to soften the grid peak, if any | not published | |
| Size and weightCabinet and dispenser | not published |
Software and standards 0 / 4
| OCPPVersion | not published | |
|---|---|---|
| ISO 15118 / Plug & Charge | not published | |
| Load and fleet managementDynamic power sharing, depot peak control | not published | |
| Software offeredBack-end, app, monitoring | not published |
Buying and running it in Europe 1 / 8
| List pricePer cabinet or per outlet, say which | not published | |
|---|---|---|
| Price per kW installedHardware only or turnkey, say which | not published | |
| Availability in EuropeOrder now, deliveries from … | On sale in Europe and North America since July 2026, first deliveries under way; the version with calibrated metering (Eichrecht) follows in the third quarter of 2026 | ↗ ↗ |
| Units delivered in Europe to date | not published | |
| Reference customers in EuropeFleets, operators, hubs | not published | |
| WarrantyYears, service levels | not published | |
| Service network in EuropeOwn technicians, partners, response time | not published | |
| Turnkey partnersWho installs it, including the grid connection | not published |
On this site 2 / 3
| In the eTRUCKTCO calculatorsWhich option, and with what loss and cost factor | not published | |
|---|---|---|
| Trucks on this site it can charge at full powerSee the truck sheets | Every truck of the T&E comparison except the DAF XG Electric is MCS-capable or announced so (MAN eTGX up to 750 kW): see the truck sheets at /sheets/avs/ | ↗ |
| Anything else worth knowing | Can be fitted with a payment terminal and, in CE/IEC markets, a DC energy meter; works with existing Kempower installations, so a depot can add MCS without replacing its power units. Kempower's MCS chargers had logged more than 4,300 sessions and 500 MWh by 1 July 2026, with a peak of 1,020 kW | ↗ ↗ ↗ |
Where these figures come from
- Kempower at IAA Transportation 2026 (Hall 13, Stand C26)
- Kempower Mega Satellite Flex, product page
- Kempower, July 2026: Mega Satellite Flex is here, first deliveries
- Clean Trucking: Kempower unveils Mega Satellite Flex with 1.2 MW MCS charging at ACT Expo 2026
- Kempower (official site)
- eTRUCKTCO business case: the four charging systems in the calculators (loss, cost multiplier, auto-selection)
- IAA Transportation 2026, Hanover, 15-20 September 2026
- Apollo Vehicle Safety for Transport & Environment: comparison of electric truck models (AVS377, August 2026)
- Kempower, 6 May 2026: Kempower introduces Mega Satellite Flex to support the transition to megawatt charging
- Kempower: Kempower Mega Satellite (product page)
- Kempower: Kempower Power Unit (product page)
- IAA TRANSPORTATION exhibitor directory, 16 September 2026: Kempower (Hall 13, Stand C26), contacts and programme
