Home › Specifications › Kempower Satellite
Kempower · Charger sheets

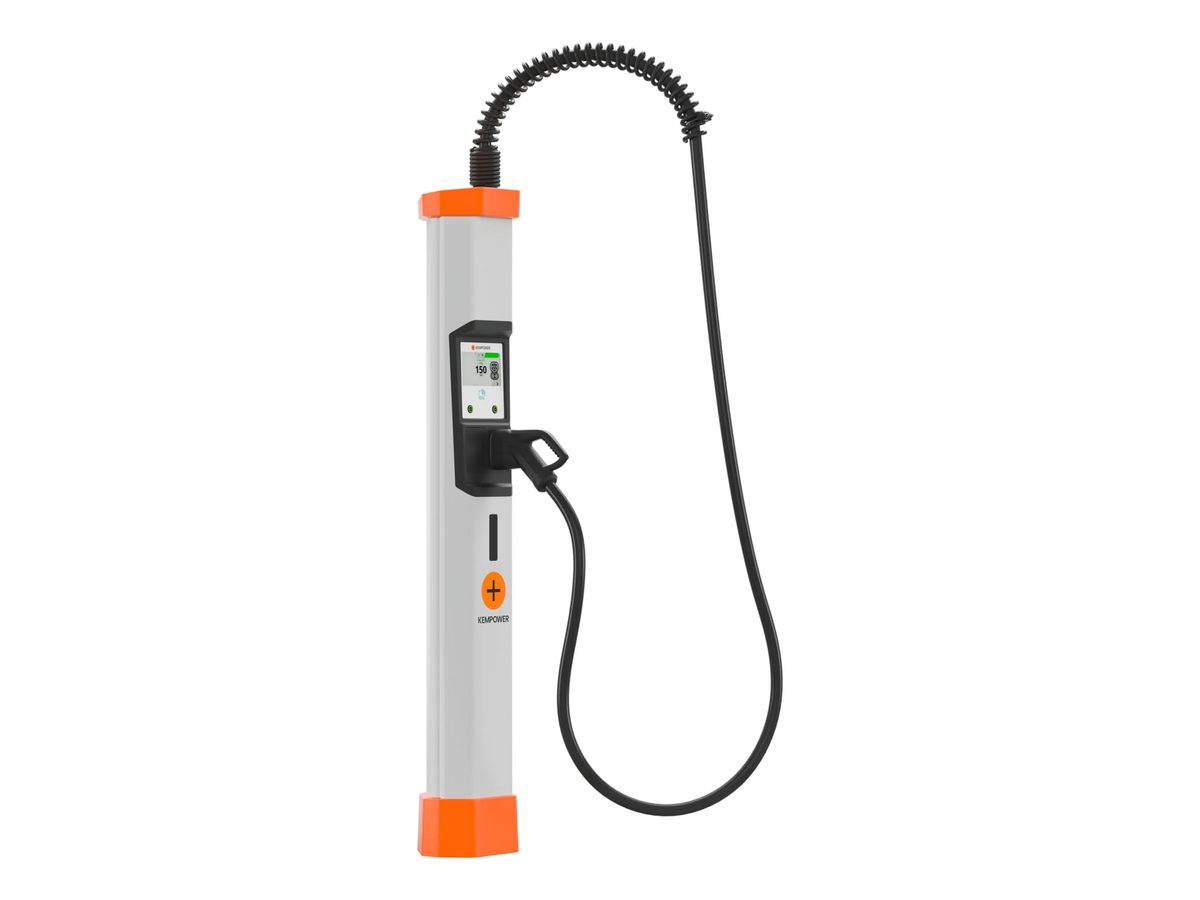

Kempower Satellite
The Kempower Power Unit with Satellite dispensers, the low-loss split-DC system the eTRUCKTCO calculators pick by default for fleets up to 80 trucks: up to 400 kW per plug, up to 12 charging points on one Power Unit and 1,200 kW with two Power Units; on the Kempower stand in Hall 13.
Image: Kempower
35 of 43 values are filled in.
Know one we are missing, or one that is wrong? This sheet is open for anyone to correct — type into it on eTRUCKTCO.eu, press Review & send, and confirm the e-mail. It is on all three sites the moment we have checked it.
Correct or complete this sheet
Company 4 / 4
IAA Transportation 2026 4 / 5
| Hall and stande.g. Hall 13, Stand C26 | Hall 13, Stand C26 | ↗ ↗ |
|---|---|---|
| Premiered in HanoverWorld or European premieres on the stand | not published | |
| Charging products on the standModels shown | Kempower Satellite, Liquid-Cooled Satellite, Power Unit, Control Unit, Mega Satellite Flex, ChargEye charging-management software | ↗ |
| Announcements at the showPartnerships, orders, launch dates | Talk "The Next Phase of Truck Charging: Insights from Real-World Operations" by Antti Vuola, VP of Product, on the Industry Stage (Hall 13), 17 September 2026, 14:00–14:45. On 15 September 2026 Kempower extended its sales and service partnership with Charge Hub to the UK | ↗ ↗ |
| Who to talk to on the standAs listed on Kempower's profile in the organiser's exhibitor directory | Kris Meskens, Sales Manager Belgium & Luxembourg; Han Dix, Country Manager Benelux; Stanislaus Gierszewski, Sales Manager Transport & Logistics DACH | ↗ |
The charging system 16 / 19
| ModelProduct name as sold | Kempower Satellite, fed by the Kempower Power Unit | ↗ |
|---|---|---|
| ArchitectureSplit DC (power cabinet + dispensers) or all-in-one | Split DC: Power Unit cabinet with dynamic power sharing, Satellite dispensers on cables, modular 50 kW power blocks | ↗ ↗ |
| Power per cabinet or unitLargest single Power Unit (triple cabinet, twelve 50 kW modules); 450 kW also offered, single and double cabinets up to 400 kW. Two Power Units in parallel give 800 or 1,200 kW | 600 kW | ↗ |
| Power-sharing stepPower moves between charging points in 25 kW steps; the power modules themselves are 50 kW. Earlier: 50 (eTRUCKTCO calculators, which count in 50 kW modules) | 25 kW | ↗ |
| Outlets per power unitDispensers or plugs one cabinet can feed | Up to 12 charging points on a 450 or 600 kW Power Unit, up to 8 on single and double cabinets; each Satellite has one or two plugs | ↗ ↗ |
| Max power per CCS outletPer plug, at 500 A and 800 V; 300 kW at the continuous 375 A | 400 kW | ↗ ↗ |
| Max current, CCS500 A for at most 15 or 50 minutes at +25 °C, depending on the version; 375 A continuous. Needs several Power Unit outputs joined together | 500 A | ↗ ↗ |
| Megawatt Charging System (MCS)The Satellite has CCS2 or CHAdeMO plugs only; the same Power Units also feed the Mega Satellite Flex, which has MCS (see its sheet) | no | ↗ |
| Max power per MCS outlet | not published | |
| Max current, MCSMCS connector allows up to 3,000 A | not published | |
| Output voltage rangeMaximum | 1000 V | ↗ |
| Efficiency, grid to plugPower Unit at full load, datasheet of March 2023 (C800); Kempower hands out newer datasheets only after a form on its website | 94 % | ↗ |
| Loss grid to battery, overnight depotAs assumed in the eTRUCKTCO calculators | ≈ 8 (split DC, low loss) % | ↗ |
| CoolingLiquid-cooled cables / air | Liquid-cooled cables on the Liquid-Cooled Satellite (500 A, 400 kW or more, for trucks and buses, with a 600 or 1,200 kW Power Unit); the Power Unit cabinet is air-cooled (air inlet and outlet) | ↗ ↗ |
| Cable lengthCharging cable length options; the Satellite can stand up to 80 m from the Power Unit. Versions with 7 m cables weigh 2 kg more | 5 / 7 m | ↗ |
| Protection and temperature rangePower Unit figures from the March 2023 datasheet | IP54, IK10; -30 to +55 °C, less current above +40 °C (Satellite). Power Unit: IP54, IK10, -30 to +50 °C | ↗ ↗ |
| NoiseLess than 60 dB at 1 m, Power Unit (datasheet of March 2023) | 60 dB | ↗ |
| Battery bufferBuilt-in storage to soften the grid peak, if any | not published | |
| Size and weightPower Unit figures from the March 2023 datasheet | Satellite 300 × 1,738 × 300 mm (W × H × D), 76–176 kg by version; Power Unit 650, 1,250 or 1,850 mm wide (single, double, triple cabinet) × 2,195 mm high × 841 mm deep, 280–1,200 kg | ↗ ↗ |
Software and standards 4 / 4
| OCPPVersion | 1.6J and 2.0.1 | ↗ ↗ |
|---|---|---|
| ISO 15118 / Plug & Charge | ISO 15118-2 Plug & Charge and AutoCharge; ISO 15118-1 and DIN 70121 on CCS2 | ↗ |
| Load and fleet managementDynamic power sharing, depot peak control | Dynamic power management: a Power Distribution Module in each Power Unit moves power in 25 kW steps to the charging points that need it | ↗ |
| Software offeredBack-end, app, monitoring | ChargEye charging management (remote monitoring and customisation); Ethernet; 7-inch touch screen, RFID, backend via OCPP, optional payment terminal | ↗ ↗ |
Buying and running it in Europe 4 / 8
| List pricePer cabinet or per outlet, say which | not published | |
|---|---|---|
| Price per kW installedHardware only or turnkey, say which | not published | |
| Availability in EuropeOrder now, deliveries from … | On sale. In April 2025 Kempower planned deliveries of the 1,200 kW ("More Power") set-up from the second quarter of 2025 and of the 12-plug ("More Plugs") set-up from early in the fourth quarter of 2025 | ↗ |
| Units delivered in Europe to date | not published | |
| Reference customers in EuropeFleets, operators, hubs | UK: five South London bus depots (Bexleyheath, Croydon, Sydenham, Thamesmead, Peckham) are the first projects of Charge Hub, which uses Kempower as its hardware partner (September 2026) | ↗ |
| WarrantyYears, service levels | not published | |
| Service network in EuropeOwn technicians, partners, response time | Service packages with remote monitoring and diagnostics; Kempower says 80 % of issues are solved remotely | ↗ |
| Turnkey partnersWho installs it, including the grid connection | UK: Charge Hub, Kempower's sales and service partner, does site design, installation, operation and maintenance | ↗ |
On this site 3 / 3
| In the eTRUCKTCO calculatorsWhich option, and with what loss and cost factor | Yes: "Kempower Satellite · split DC · 8 % loss", hardware factor 0.94; the automatic choice for fleets up to 80 trucks | ↗ |
|---|---|---|
| Trucks on this site it can charge at full powerSee the truck sheets | Every truck of the T&E comparison except the DAF XG Electric is MCS-capable or announced so (MAN eTGX up to 750 kW): see the truck sheets at /sheets/avs/ | ↗ |
| Anything else worth knowing | The MCS dispenser for the same Power Units, the Mega Satellite Flex, has a sheet of its own on this site | ↗ |
Where these figures come from
- Kempower at IAA Transportation 2026 (Hall 13, Stand C26)
- Kempower (official site)
- eTRUCKTCO business case: the four charging systems in the calculators (loss, cost multiplier, auto-selection)
- IAA Transportation 2026, Hanover, 15-20 September 2026
- Apollo Vehicle Safety for Transport & Environment: comparison of electric truck models (AVS377, August 2026)
- Kempower: Kempower Satellite (product page)
- Kempower: Kempower Power Unit (product page)
- Kempower: Kempower Liquid-Cooled Satellite (product page)
- Kempower, July 2025: Technical Datasheet Kempower Satellite Version 2, rev. 3.60 (PDF, copy hosted by the distributor Qelo)
- Kempower, March 2023: Technical Datasheet Kempower Power Unit C800, rev. 3.20 (PDF, copy hosted by the distributor EV Point)
- Kempower, 9 April 2025: Kempower introduces enhanced charging solution with more power, more plugs, and more data
- Kempower, 15 September 2026: Australian EV charging operator Charge Hub expands strategic partnership with Kempower as it moves into UK market
- Kempower: Kempower service packages
- IAA TRANSPORTATION exhibitor directory, 16 September 2026: Kempower (Hall 13, Stand C26), contacts and programme
