Siemens SICHARGE FLEX

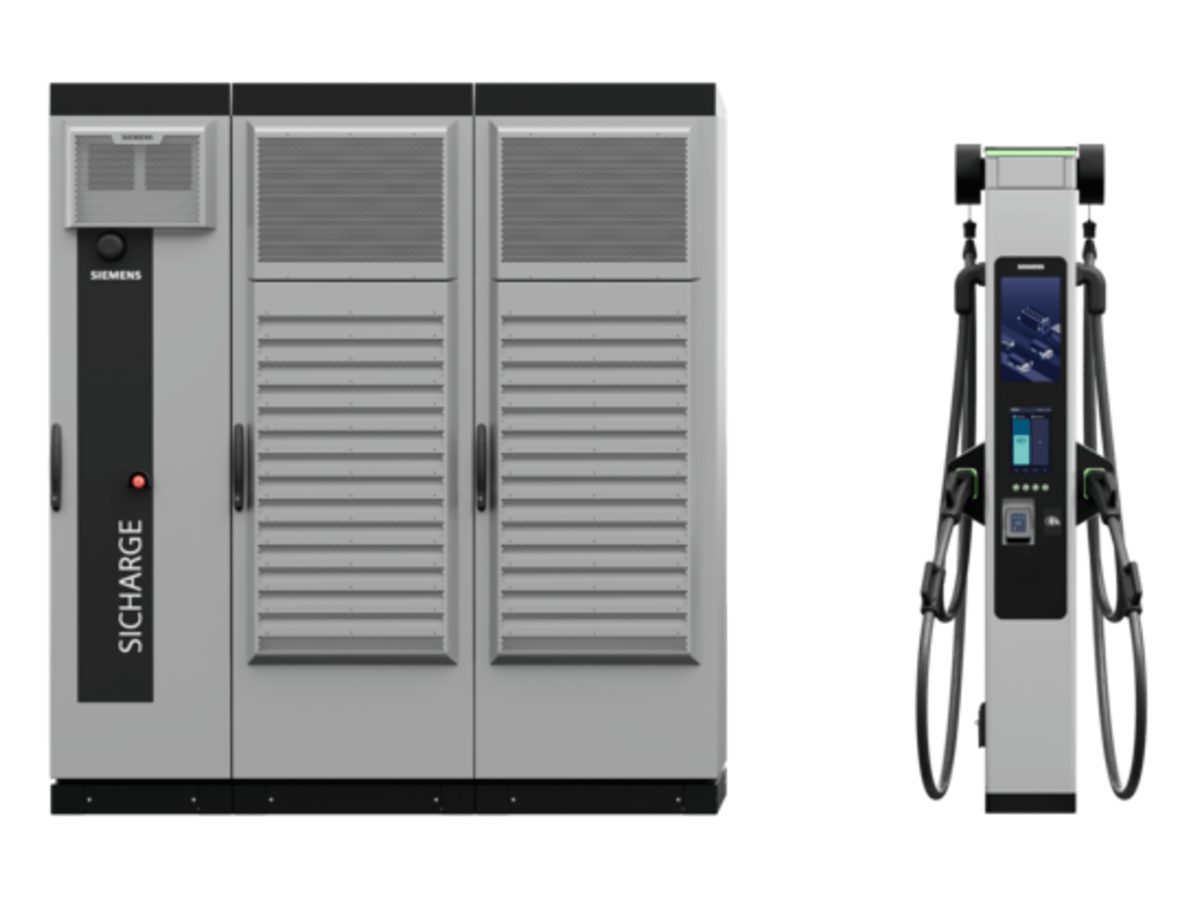

Siemens eMobility's megawatt charging system, first on its IAA stand: one power cabinet of 480 to 1,680 kW feeds up to six CCS or MCS dispensers (up to four MCS, 1,500 A) placed up to 300 m away, shifting power in 80 or 120 kW steps. On sale from 2026; OMV ordered the first one for Kufstein in Austria.
Image: Siemens
28 of 43 values are filled in.
Know one we are missing, or one that is wrong? This sheet is open for anyone to correct — type into it on eTRUCKTCO.eu, press Review & send, and confirm the e-mail. It is on all three sites the moment we have checked it.
Correct or complete this sheet
Company 4 / 4
IAA Transportation 2026 4 / 5
| Hall and stande.g. Hall 13, Stand C26 | Hall 13, Booth E15 | ↗ ↗ |
|---|---|---|
| Premiered in HanoverSICHARGE FLEX was launched at Busworld 2025 in Brussels; Siemens' IAA page does not announce a premiere | not published | |
| Charging products on the standModels shown | SICHARGE FLEX with a two-year Sifinity Control licence included; SIVACON S1 distribution boards; pantographs | ↗ |
| Announcements at the showPartnerships, orders, launch dates | Keynote "Charging beyond hardware" by Markus Mildner, CEO Siemens eMobility, Main Stage (Hall 18), 15 September 2026, 14:45. Short talks on the stand every day, among them "Introducing SICHARGE FLEX" (Tuesday, Wednesday and Friday, 16:00), Sifinity Control, and on-board and inverted pantographs | ↗ ↗ |
| Who to talk to on the standAs listed on Siemens' profile in the organiser's exhibitor directory | Norbert Vierheilig, Senior Comms Manager, Siemens AG | ↗ |
The charging system 12 / 19
| ModelProduct name as sold | SICHARGE FLEX | ↗ |
|---|---|---|
| ArchitectureSplit DC (power cabinet + dispensers) or all-in-one | Split DC: one central power cabinet feeds up to six dispensers (floor columns, or wall and overhead dispenser cabinets) placed up to 300 m away, with dynamic power allocation between outlets | ↗ ↗ ↗ |
| Power per cabinet or unitThree cabinet sizes: 480/560, 960/1,120 and 1,680 kW | 480 / 560 / 960 / 1120 / 1680 kW | ↗ ↗ |
| Power-sharing stepSmallest block of power that can move between outlets | 80 / 120 kW | ↗ ↗ |
| Outlets per power unitDispensers per power cabinet, single or dual plug; up to 4 of them MCS. electrive reports CCS expandable to 12–18 charging points | 6 | ↗ ↗ |
| Max power per CCS outlet | not published | |
| Max current, CCS375 A continuous with an air-cooled cable, 500 A with a liquid-cooled cable; single or dual plug | 375 / 500 A | ↗ ↗ |
| Megawatt Charging System (MCS)Up to 4 MCS charging points per system; on sale from 2026 | available | ↗ ↗ |
| Max power per MCS outletLargest cabinet; Siemens says power can go to one charging point in amounts from 80 kW up to 1.68 MW | 1680 kW | ↗ |
| Max current, MCSMCS dispenser. The MCS connector allows up to 3,000 A | 1500 A | ↗ ↗ |
| Output voltage range | not published | |
| Efficiency, grid to plugAs published by the maker | not published | |
| Loss grid to battery, overnight depotAs assumed in the eTRUCKTCO calculators | Not modelled; the calculators only carry the SICHARGE UC (≈ 11–12 %) % | ↗ |
| CoolingLiquid-cooled cables / air | Air- or liquid-cooled cables on the dispenser columns; Siemens says the cabinet's cooling concept keeps the installation area small | ↗ |
| Cable lengthVarious cable lengths offered; not specified | not published | |
| Protection and temperature rangeIP rating, °C | not published | |
| Noise | not published | |
| Battery bufferBuilt-in storage to soften the grid peak, if any | not published | |
| Size and weightCabinet dimensions and weights not published | Power cabinet: up to 656 kW per m²; dispenser column 0.10 m² (CCS 375 A), MCS dispenser 0.2 m², wall or overhead dispenser cabinet 0.16 m² (CCS 375 A) | ↗ ↗ |
Software and standards 3 / 4
| OCPPVersion | Supported, configurable in Sifinity Control to link any backend; version not published | ↗ |
|---|---|---|
| ISO 15118 / Plug & Charge | not published | |
| Load and fleet managementDynamic power sharing, depot peak control | Fully dynamic power allocation in 80/120 kW steps, based on what each vehicle asks for in real time; Sifinity Control for peak management | ↗ ↗ |
| Software offeredBack-end, app, monitoring | Sifinity Control web application (two-year licence included): live charger status, remote access for regional service teams, exportable event log, outlet and OCPP settings. Options: advertising screen, payment solutions, MID-certified DC meter, VDV 261 | ↗ ↗ |
Buying and running it in Europe 3 / 8
| List pricePer cabinet or per outlet, say which | not published | |
|---|---|---|
| Price per kW installedHardware only or turnkey, say which | not published | |
| Availability in EuropeOrder now, deliveries from … | On sale from 2026; launched at Busworld 2025 in Brussels | ↗ |
| Units delivered in Europe to date | not published | |
| Reference customers in EuropeFleets, operators, hubs | OMV ordered the first system for its Kufstein site on the A12 in Austria: 6 charging points, 10 after the grid is reinforced, for cars, trucks and buses | ↗ ↗ |
| WarrantyYears, service levels | not published | |
| Service network in EuropeOwn technicians, partners, response time | Service agreements, on-site and spare-part service by staff trained by the manufacturer, remote services, upgrades and retrofits, and training | ↗ |
| Turnkey partnersWho installs it, including the grid connection | not published |
On this site 2 / 3
| In the eTRUCKTCO calculatorsWhich option, and with what loss and cost factor | not published | |
|---|---|---|
| Trucks on this site it can charge at full powerSee the truck sheets | Every truck of the T&E comparison except the DAF XG Electric is MCS-capable or announced so (MAN eTGX up to 750 kW): see the truck sheets at /sheets/avs/ | ↗ |
| Anything else worth knowing | Siemens says it has installed more than 80,000 chargers in over 60 countries through more than 800 projects. The SICHARGE UC, which the calculators carry, has a sheet of its own on this site | ↗ |
Where these figures come from
- Siemens eMobility at IAA Transportation 2026 (Hall 13, Booth E15)
- Siemens eMobility (official site)
- eTRUCKTCO business case: the four charging systems in the calculators (loss, cost multiplier, auto-selection)
- IAA Transportation 2026, Hanover, 15-20 September 2026
- Apollo Vehicle Safety for Transport & Environment: comparison of electric truck models (AVS377, August 2026)
- Siemens: SICHARGE FLEX – Experience beyond hardware (product page)
- Siemens AG, October 2025: SICHARGE FLEX – Experience beyond hardware (brochure, PDF)
- Siemens, 4 October 2025: SICHARGE FLEX: Siemens unveils Next-Gen EV Charging System for the Megawatt era
- electrive, 4 October 2025: Siemens introduces Sicharge Flex megawatt charging system
- IAA TRANSPORTATION exhibitor directory, 16 September 2026: Siemens (Hall 13, Stand E15), contacts and programme
