Home › Specifications › Milence × Power Electronics MCS
Milence / Power Electronics · Charger sheets
Milence × Power Electronics MCS
The megawatt charger of the truck makers' own charging operator: Power Electronics' MCS dispenser, up to 1,440 kW and 1,500 A, in use at Milence hubs such as Antwerp-Bruges since 2025. At the IAA, Milence runs its megawatt charging demos on Alpitronic's HYC1000 instead, and signed a partnership with Alpitronic.

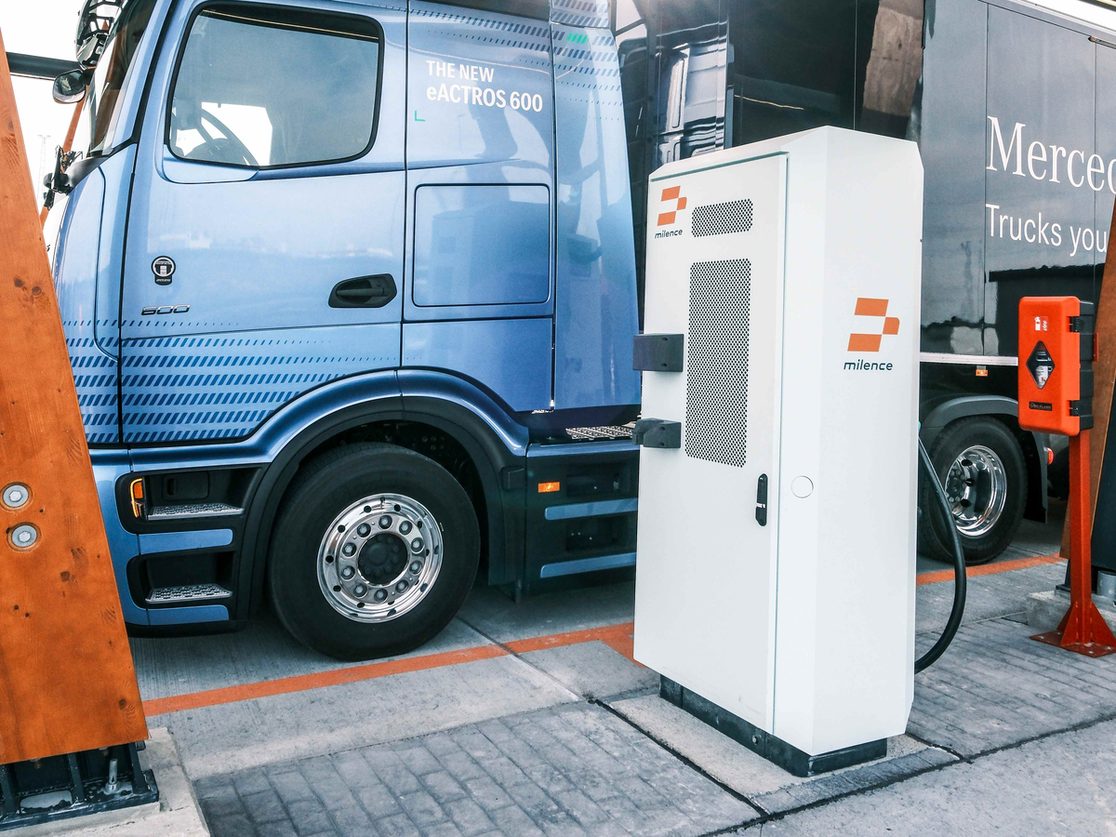

Photo: Milence
30 of 43 values are filled in.
Know one we are missing, or one that is wrong? This sheet is open for anyone to correct — type into it on eTRUCKTCO.eu, press Review & send, and confirm the e-mail. It is on all three sites the moment we have checked it.
Correct or complete this sheet
Company 4 / 4
| CompanyLegal name | Milence B.V. (charging operator) with Power Electronics España S.L. (charger maker) | ↗ ↗ |
|---|---|---|
| HeadquartersCity, country | Amsterdam, the Netherlands; Power Electronics: Valencia, Spain | ↗ ↗ |
| Parent group | Milence is a joint venture of Daimler Truck, TRATON GROUP and Volvo Group | ↗ |
| Website | milence.com; power-electronics.com | ↗ ↗ |
IAA Transportation 2026 4 / 5
| Hall and stande.g. Hall 13, Stand C26 | Hall 19/20, Stand C40 (charging demos: Hall 14/15, Stands C42 and C43) | ↗ ↗ |
|---|---|---|
| Premiered in HanoverWorld or European premieres on the stand | not published | |
| Charging products on the standThe Power Electronics charger of this sheet is not reported at the demos | Megawatt charging demos on Alpitronic's HYC1000 (up to 1,000 kW), backed by a Pixii PowerBase XLP battery (up to 1 MW, 2 MWh) | ↗ ↗ |
| Announcements at the showPartnerships, orders, launch dates | Megawatt charging demos at the Test Drives terminal (Hall 14/15, Stand C43) every day: with Daimler Truck at 10:00, MAN at 13:00 and Scania at 16:00 (20 September: 10:00, 12:00, 14:00). Keynote by CEO Anja van Niersen, Main Stage (Hall 18), 15 September, 15:30. A visit to the Milence hub at Barsinghausen on the A2. With Daimler Truck, charging that starts and bills itself when the truck plugs in, without card or app. During the show Milence and Alpitronic signed a memorandum of understanding for long-term cooperation on megawatt charging | ↗ ↗ ↗ ↗ |
| Who to talk to on the standAs listed on Milence's profile in the organiser's exhibitor directory | Tim Baumeister, Key Account Manager Transport & Logistics; Teun Oosterveen, Head of Network Sales; Tobias Prenzel, Head of Business Development | ↗ |
The charging system 14 / 19
| ModelProduct name as sold | Power Electronics MCS charger to Milence specification | ↗ |
|---|---|---|
| ArchitectureSplit DC (power cabinet + dispensers) or all-in-one | Split DC: MCS dispensers fed by a separate Power Electronics power system with one to four outputs; CCS or NACS dispensers can be added to the same system | ↗ ↗ |
| Power per cabinet or unitContinuous maximum of the Power Electronics MCS solution, shared over its outputs | 1440 kW | ↗ |
| Power-sharing stepSmallest block of power that can move between outlets | not published | |
| Outlets per power unitOutputs charging at the same time | 1 to 4 | ↗ |
| Max power per CCS outlet | not published | |
| Max current, CCSThe dispenser datasheet lists the maximum continuous current as "600 | MCS 1500"; we read 600 A as the figure for the liquid-cooled CCS and NACS connectors. On a dispenser with MCS and CCS, the plugs charge one after the other | 600 A | ↗ |
| Megawatt Charging System (MCS)available / planned / no | available | ↗ |
| Max power per MCS outletContinuous (1,500 A at 1,000 V); 1,100 kW was reached in the July 2024 test with a Mercedes-Benz eActros 600 prototype | 1440 kW | ↗ ↗ ↗ |
| Max current, MCSContinuous; the datasheet says to consult Power Electronics for the 1,500 A MCS version. The MCS connector allows up to 3,000 A | 1500 A | ↗ ↗ ↗ |
| Output voltage rangeDispenser output range | 150–1000 V | ↗ |
| Efficiency, grid to plugAs published by the maker | not published | |
| Loss grid to battery, overnight depotAs assumed in the eTRUCKTCO calculators | Not in the calculators (public en-route charging, not depot) % | ↗ |
| CoolingLiquid-cooled cables / air | Liquid-cooled cables on all connectors (MCS, CCS, NACS) | ↗ |
| Cable lengthMCS cable; CCS and NACS cables 5 or 7.6 m, 6.1 m on request | 4 m | ↗ |
| Protection and temperature rangeIP rating, °C | IP54, IK10 (screen IK08); -25 to +50 °C, -30 °C as an option; up to 2,000 m altitude without derating | ↗ |
| Noise | not published | |
| Battery bufferBuilt-in storage to soften the grid peak, if any | not published | |
| Size and weightPower system dimensions not published | Dispenser 710 × 950 × 2,250 mm (W × D × H, preliminary) | ↗ |
Software and standards 3 / 4
| OCPPAlso Industrial Ethernet and a REST API (ask Power Electronics) | 1.6J; 2.0.1 on request | ↗ |
|---|---|---|
| ISO 15118 / Plug & Charge | ISO 15118-20 and DIN 70121 | ↗ |
| Load and fleet managementDynamic power sharing, depot peak control | not published | |
| Software offeredBack-end, app, monitoring | 10-inch touchscreen, RFID reader, optional payment terminal and emergency stop; built-in DC energy measurement, optional calibrated (MID/Eichrecht) DC meter | ↗ |
Buying and running it in Europe 3 / 8
| List pricePer cabinet or per outlet, say which | not published | |
|---|---|---|
| Price per kW installedHardware only or turnkey, say which | not published | |
| Availability in EuropeOrder now, deliveries from … | In use at Milence hubs since February 2025. Milence aims for at least 284 MCS charging points at 71 locations in 10 EU countries by 2027 | ↗ |
| Units delivered in Europe to date | not published | |
| Reference customers in EuropeFleets, operators, hubs | Milence's own hubs: two Power Electronics MCS chargers at Truck Parking Ketenis, Port of Antwerp-Bruges (February 2025; the hub has 22 bays with 4 MW of CCS and 2.8 MW of MCS), and Landvetter near Gothenburg, Sweden | ↗ ↗ ↗ ↗ |
| WarrantyYears, service levels | not published | |
| Service network in EuropeOwn technicians, partners, response time | Power Electronics runs a 24/7 technical service line | ↗ |
| Turnkey partnersWho installs it, including the grid connection | not published |
On this site 2 / 3
| In the eTRUCKTCO calculatorsWhich option, and with what loss and cost factor | not published | |
|---|---|---|
| Trucks on this site it can charge at full powerSee the truck sheets | Every truck of the T&E comparison except the DAF XG Electric is MCS-capable or announced so (MAN eTGX up to 750 kW): see the truck sheets at /sheets/avs/ | ↗ |
| Anything else worth knowing | Milence says the MCS cuts charging time by about 90 %, to roughly 30 minutes; in a June 2025 demonstration at Landvetter a truck went from 20 to 80 % in about 40 minutes. The datasheet announces updated hardware as "coming soon". Milence, which chose Power Electronics chargers for its first MCS sites, named Alpitronic a key megawatt charging partner in September 2026 | ↗ ↗ ↗ ↗ |
Where these figures come from
- Milence press release: Milence and Power Electronics test a new MCS solution delivering a 1.1 MW charge
- E-Mobility Engineering: Milence and Power Electronics test MW charging system
- Sustainable Truck&Van: Milence opens public charging hub for electric trucks at the Port of Antwerp-Bruges
- Milence (official site)
- Power Electronics (official site)
- eTRUCKTCO business case: the four charging systems in the calculators (loss, cost multiplier, auto-selection)
- IAA Transportation 2026, Hanover, 15-20 September 2026
- Apollo Vehicle Safety for Transport & Environment: comparison of electric truck models (AVS377, August 2026)
- Milence: Milence at IAA Transportation 2026 (event page)
- Daimler Truck, 13 September 2026: IAA Transportation 2026 – Daimler Truck celebrates 130 years of trucks and drives transportation forward
- Power Electronics: MCS Solution (product page)
- Power Electronics: MCS Dispenser datasheet, V. 1.1 (PDF)
- Power Electronics, 8 August 2025: MCS in Action: Powering Heavy-Duty EV Transport
- Milence, 25 February 2025: Milence deploys its first Megawatt Charging System solution at the Port of Antwerp Bruges
- IAA TRANSPORTATION exhibitor directory, 16 September 2026: Milence (Hall 19/20, Stand C40; Hall 14/15, Stands C42 and C43), contacts and programme
- electrive, 16 September 2026: Milence and Alpitronic announce megawatt charging partnership
- electrive.net, 16 September 2026: Milence und Alpitronic wollen Megawatt-Laden gemeinsam vorantreiben
