MAN eTGL
For a cost comparison MAN gives more than usual: 0.69 kWh/km behind its 310 km range, a 10 to 80 % charge in about 35 minutes at 250 kW, and about 6.6 t of chassis payload. What is still missing to set it against a diesel TGL is the price, and range and consumption are MAN's own figures, not measured under EU rules.
Battery160 kWh
Range310 km
DC charging250 kW
Payload6.6 t

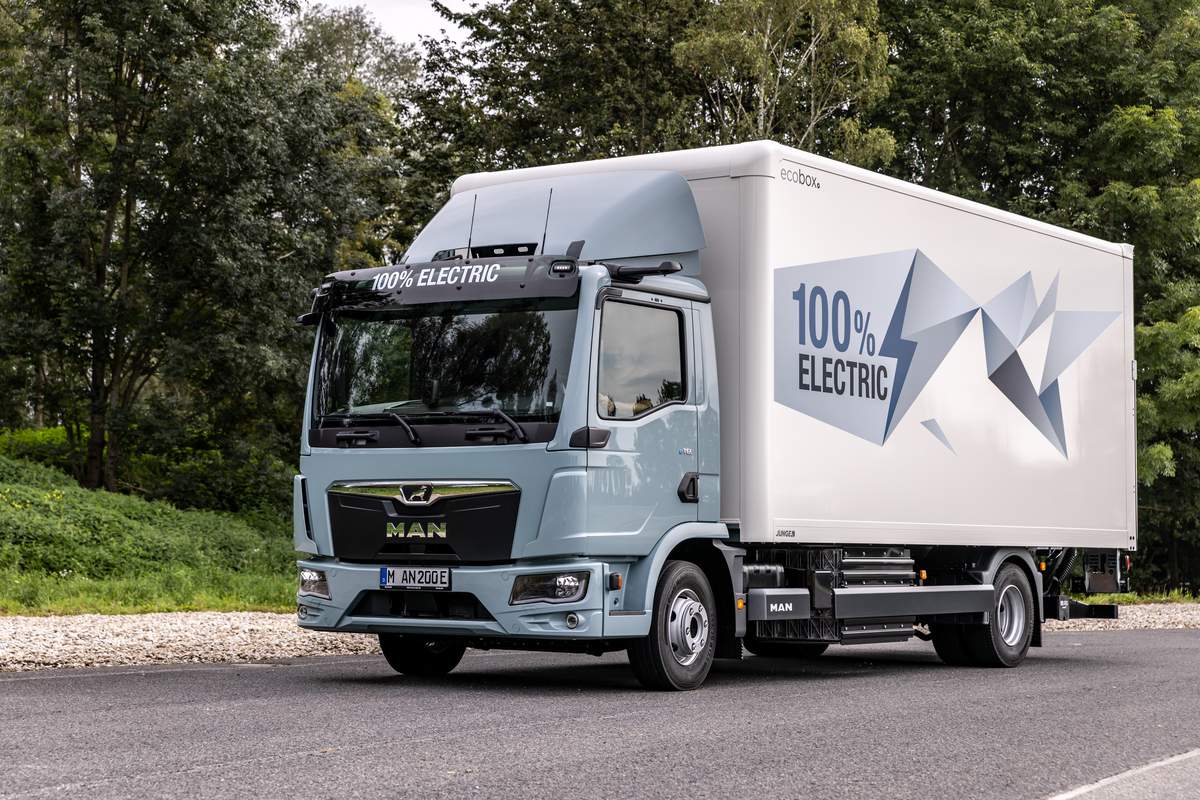

Photo: MAN Truck & Bus
38 of 77 values are filled in.
Know one we are missing, or one that is wrong? This sheet is open for anyone to correct — type into it on eTRUCKTCO.eu, press Review & send, and confirm the e-mail. It is on all three sites the moment we have checked it.
Correct or complete this sheet
General 9 / 19
| ModelModel name as sold | eTGL 4x2 rigid chassis, 12 t | ↗ ↗ |
|---|---|---|
| Vehicle typeNo tractor version | Battery-electric light distribution truck, rigid chassis (box and refrigerated bodies) | ↗ ↗ |
| Axle configuration | 4x2 | ↗ ↗ |
| Gross combination weightMAN's technical data give 11.99 t for gross vehicle and combination weight alike: its brochure offers trailer work for 4x2 chassis 'excluding eTGL' | 11.99 t | ↗ ↗ |
| Gross vehicle weightRigid chassis, no tractor version: 11.99 t gross vehicle weight | 11990 kg | ↗ ↗ |
| Kerb weightChassis without body, about 5,400 kg; indicative, from MAN's eTGL brochure of 09/2024 | 5400 kg | ↗ |
| PayloadChassis payload before the body, up to about 6,600 kg; what is left depends on the body. The eTGL takes no trailer | 6.6 t | ↗ ↗ |
| Payload if the Council position on 96/53/EC is adopted | not published | |
| Front / rear axle design loadNot published | not published | |
| Drive-axle load at maximum payload | not published | |
| Overall lengthNot published; MAN gives body lengths of 6,200 to 7,300 mm | not published | |
| Overall widthNot published | not published | |
| Overall heightNot published | not published | |
| WheelbaseOne wheelbase | 4500 mm | ↗ ↗ ↗ |
| Turning radius, minimum | not published | |
| Top speedNot published | not published | |
| SuspensionNot published | not published | |
| Fifth wheelRigid chassis, no fifth wheel | not published | |
| Clean-sheet electric design or converted diesel platform | Based on the diesel 12-tonne TGL, with the battery packs and drive unit of the heavy eTGX and eTGS | ↗ ↗ |
Battery 4 / 9
| Battery capacity, installed (gross)Not published | not published | |
|---|---|---|
| Battery capacity, usableTwo packs of 80 kWh usable; the only battery option | 160 kWh | ↗ ↗ ↗ |
| Cell chemistryMAN's eTGL material names no chemistry; it says the eTGL uses the same packs as eTGX and eTGS, and electrive names them as NMC packs shared with the eTGL | NMC (nickel manganese cobalt) | ↗ ↗ |
| Cell supplierNot published; MAN builds the packs itself in Nuremberg | not published | |
| System voltageNot published | not published | |
| Pack architecture | Two packs, one on each side of the frame | ↗ ↗ |
| Battery life, ratedGiven for MAN eTruck batteries in general, not for the eTGL; MAN's web page says 13 years, its brochure of 05/2026 15 years | Forecast up to 1.6 million km or up to 15 years, depending on use | ↗ ↗ |
| Operating temperature, battery and thermal system | not published | |
| Battery warrantyNot published | not published |
Range and energy 3 / 8
| Range, as claimedUp to, MAN's own figure (not EU-certified). At the 2024 premiere MAN gave 235 km. With top-up charging in breaks MAN says up to 600 km a day | 310 km | ↗ ↗ ↗ |
|---|---|---|
| Range, favourable conditionsMAN's 310 km is already an 'up to' figure | not published | |
| Range, real-world | not published | |
| Range test conditionTemperature and load not stated | Solo vehicle in distribution work, at 0.69 kWh/km | ↗ |
| Energy consumptionThe consumption MAN uses for its 310 km range figure | 0.69 kWh/km | ↗ |
| Test fleet mileage | not published | |
| Drag coefficient (Cd) | not published | |
| Regenerative braking, peakNot published | not published |
Charging 4 / 6
| DC charge portsPort position not published | CCS | ↗ ↗ |
|---|---|---|
| Max DC charge powerAt up to 334 A (brochure; 335 A in the 2024 release) | 250 kW | ↗ ↗ ↗ ↗ |
| Charge time 20–80 %20 to 80 % on CCS at 334 A: about 26 minutes; from 5 %: about 33 minutes (brochure table, two packs). MAN's IAA 2026 release and product page say about 35 minutes from 10 to 80 % | 26 min | ↗ ↗ ↗ |
| Megawatt Charging System (MCS)MAN offers MCS on the eTGX and eTGS only; the brochure's charging table has no MCS entry for two packs | No | ↗ ↗ |
| AC chargingNot published | not published | |
| Vehicle-to-grid / bidirectionalyes / no | not published |
Powertrain 3 / 7
| Motor layoutMAN says it is the smallest of its three eTruck drives | One electric motor with a two-speed gearbox, mounted in the middle of the frame, driving the rear axle through a propshaft | ↗ ↗ |
|---|---|---|
| Continuous power285 hp, as MAN publishes it; MAN does not say whether continuous or peak. electrive reports it is the heavy trucks' 245 kW motor set to 210 kW | 210 kW | ↗ ↗ ↗ |
| Peak powerNot published separately | not published | |
| Peak torqueNot published for the eTGL; the eTGM with a 210 kW drive gives 800 Nm | not published | |
| Transmission | Two-speed gearbox | ↗ ↗ |
| Gradeability, maximum | not published | |
| Acceleration 0–80 km/h at GCW | not published |
Safety 2 / 3
| Truck safety ratingNo Euro NCAP rating published for the TGL or eTGL | not published | |
|---|---|---|
| Driver assistance (ADAS)Announced for MAN's truck ranges at IAA 2026; which are standard on the eTGL is not stated | MAN model year 2026: EBA Advanced emergency braking (active from 1 km/h), driver monitoring for distraction and fatigue, FrontDetection Plus, turning assistant with automatic braking, side monitoring with exit warning, EfficientCruise with PredictiveDrive (offered from TGL to TGX), OptiView camera mirrors | ↗ ↗ |
| Braking and stabilityNo detail on brakes or stability control published | Dangerous-goods (ADR AT and FL) equipment with battery emergency shut-off, for selected versions | ↗ |
Cab and equipment 4 / 5
| Cab type | CC day cab (compact), one step to climb in | ↗ ↗ |
|---|---|---|
| Standard equipmentStandard or optional not stated | 12.3-inch digital instrument display showing charge, range and energy use; calm display mode | ↗ ↗ |
| Power take-off (ePTO)No power take-off for other body equipment published | High-voltage interface to run a refrigeration unit from the truck's battery; the unit can sit at the front of the body or under the frame | ↗ ↗ |
| Driver positionleft, right, centre | not published | |
| TyresSizes not published | 17.5-inch | ↗ |
Service and warranty 4 / 5
| Service intervalBattery maintenance is planned from the vehicle's battery data (MAN ServiceCare) | not published | |
|---|---|---|
| Vehicle warrantyGiven for MAN eTrucks in general; standard or paid option not stated | Three-year driveline warranty, offered as a MAN eMobility service product | ↗ ↗ |
| Service network in EuropeMAN itself €300 million, its dealers, service partners and importers about €400 million; about a third goes to e-mobility and digital work (high-voltage training, battery repair centres, public charging points at MAN branches). Aim: almost 80 % of customers within a 30-minute drive of a MAN workshop in Germany, Austria, Switzerland, France, the UK, Italy, Poland, Spain and Turkey. MAN's IAA overview release calls the €700 million 'worldwide' | MAN service outlets being qualified for eTrucks, fully e-ready planned by 2028; Mobile24 breakdown service and an uptime guarantee in more than 30 European countries; MAN and its partners plan to invest about €700 million in the European sales and service network by the end of 2030 | ↗ ↗ |
| Over-the-air updatesMap updates only, announced for MAN trucks without naming ranges | Map data updated over the air (Connected Maps), announced at IAA 2026 | ↗ |
| Telematics / fleet portal | MAN eManager M included for five years; ServiceCare S, Driver Apps and Charge&Go card free | ↗ ↗ |
Production and market 3 / 12
| Production / assemblyKraków is MAN's second electric truck plant after Munich | Kraków plant, Poland, since mid-July 2026; battery packs built by MAN in Nuremberg | ↗ ↗ |
|---|---|---|
| Key suppliers | not published | |
| First customer | not published | |
| Homologation in the EUEU WVTA, national, … | not published | |
| Availability in EuropeSales were announced to open in April 2025 at the 2024 premiere (MAN) | Series vehicles available from the fourth quarter of 2026 | ↗ |
| Trucks delivered to dateNot published | not published | |
| List price, EuropeNot published | not published | |
| Lease rateNot published. MAN FinancialServices offers leasing, financing and insurance in 19 countries, among them Belgium, Germany, France and the UK, and financed more than half of the MAN eTrucks newly registered in the first half of 2026 | not published | |
| Maintenance cost | not published | |
| Residual value after 5 years | not published | |
| Toll and CO₂ classEU CO₂ class 5 = zero-emission | not published | |
| IAA Transportation 2026The eTGL itself premiered at IAA Transportation 2024 | Hall 11, Stand D08; shown with the eTGM, eTGS and eTGX, MAN's full electric truck range on display together for the first time | ↗ ↗ ↗ |
Company 2 / 3
Where these figures come from
- IAA Transportation newsroom, 22 July 2026: MAN Showcases Van and Truck Portfolio from 3.5 to 250 Tons with Electric and Conventional Drives at IAA TRANSPORTATION
- MAN Truck & Bus: MAN eTGL product page on man.eu (technical data, battery table, disclaimers), read 15 September 2026
- MAN Truck & Bus, IAA press kit, 14 September 2026: Electrified light series: MAN eTGL for urban and regional distribution transport (PDF)
- MAN Truck & Bus, 4 September 2024: World premiere for the MAN eTGL at the IAA
- MAN Truck & Bus: The new MAN eTGL, brochure, status 09/2024 (product specifications, indicative weights)
- MAN Truck & Bus: The new MAN eTruck generation, brochure D111.3695/EN, 05/2026 (technical specifications, charging table)
- MAN Truck & Bus: MAN electric trucks, model overview on man.eu (charging, FAQ), read 15 September 2026
- MAN Truck & Bus, 16 July 2026: MAN continues to invest in Poland (start of eTGL series production in Kraków)
- MAN Truck & Bus, IAA press kit, 14 September 2026: More efficiency, availability and safety: MAN truck innovations at IAA 2026 (PDF)
- MAN Truck & Bus, 14 September 2026: “Driving.People.Partner”: MAN – IAA Transportation 2026 press kit
- electrive, 4 September 2024: MAN adds 12-tonne model to its electric truck portfolio (Carla Westerheide)
- electrive, 13 May 2026: MAN unveils electric 16-tonne truck eTGM (Cora Werwitzke; also on the eTGL's drive and packs)
- IAA Transportation 2026: press conference line-up, 14–15 September (MAN Truck & Bus: Hall 11, D08)
- MAN on this site (IAA 2026 maker sheet)
- MAN Truck & Bus, IAA press kit, 14 September 2026: MAN partners step up investment in service network (PDF)
- MAN Truck & Bus, IAA press kit, 14 September 2026: MAN FinancialServices puts more eTrucks on the road (PDF)
