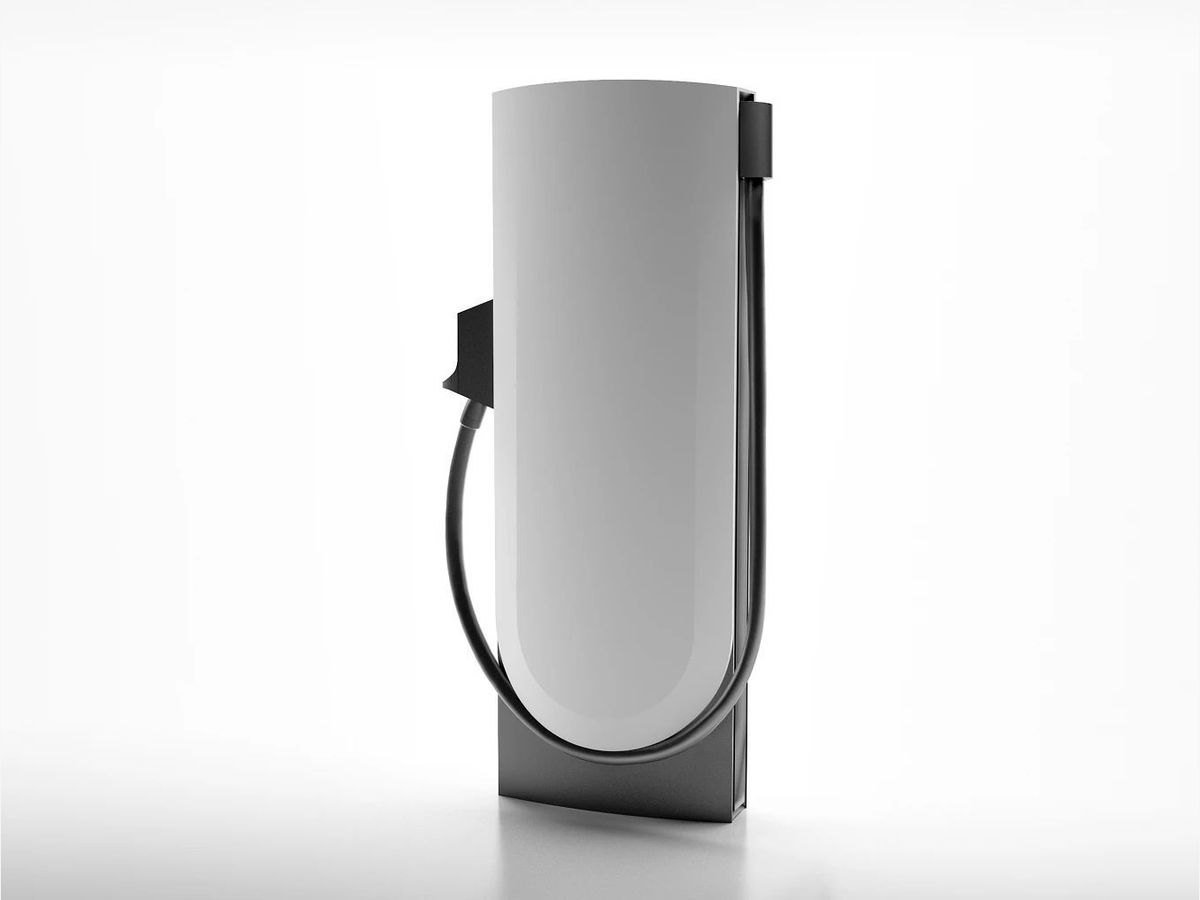

Tesla Megacharger V4
Tesla's 1.2 MW MCS charger for the Semi, which Tesla says refills up to 60 % of the battery in about 30 minutes. Tesla opened sales to businesses in Germany, the Netherlands, Belgium, France and the UK on 14 September 2026. electrive reports €163,000 for one cabinet with two posts in Tesla's European configurator and deliveries from mid-2027, but not whether VAT or installation is included, and European service terms are not published yet, so it cannot be fully costed for a depot. Tesla also plans 21 public Megacharger sites in Europe from 2027. The European Semi is quoted at up to 800 kW, not 1.2 MW.
Price163000 (VAT not stated)
Image: Tesla
24 of 43 values are filled in.
Know one we are missing, or one that is wrong? This sheet is open for anyone to correct — type into it on eTRUCKTCO.eu, press Review & send, and confirm the e-mail. It is on all three sites the moment we have checked it.
Correct or complete this sheet
Company 1 / 4
| CompanyLegal name | Tesla | ↗ |
|---|---|---|
| HeadquartersCity, country | not published | |
| Parent group | not published | |
| Website | not published |
IAA Transportation 2026 3 / 5
| Hall and standListed as TESLA SEMI; not confirmed that a Megacharger is on the stand | Hall 12, Stand B01 (test drives: Hall 14/15, TD07) | ↗ ↗ |
|---|---|---|
| Premiered in HanoverWorld or European premieres on the stand | not published | |
| Charging products on the standModels shown | not published | |
| Announcements at the showThe five-country sales launch was reported by Drive Tesla Canada (14 September 2026), quoting Tesla Charging on X | In his IAA keynote Tesla's Dan Priestley announced a public Megacharger network for Europe from 2027: 21 sites with more than 100 MCS charging points in Germany, France, the Benelux, the UK and Sweden. Semi Charging for Business, which sells the Megacharger and the 120 kW Basecharger to businesses, opened in Germany, the Netherlands, Belgium, France and the UK on 14 September 2026, the IAA press day | ↗ ↗ |
| Who to talk to on the standAs listed on the TESLA SEMI profile in the organiser's exhibitor directory | Theresa Tendick, Business Development Manager; Marcel Streller, Fleet Coordinator, Semi (Tesla, Inc.) | ↗ |
The charging system 13 / 19
| ModelProduct name as sold | Megacharger: V4 power cabinet with second-generation MC2 charging posts | ↗ ↗ |
|---|---|---|
| ArchitectureSplit DC (power cabinet + dispensers) or all-in-one | Split DC: a central power cabinet feeding compact charging posts, which Tesla says takes less space and costs less than conventional heavy-duty chargers | ↗ |
| Power per cabinet or unitShared by the two posts on a cabinet. Reported in secondary coverage (Electrek, 1 May 2026) only | 1200 kW | |
| Power-sharing stepSmallest block of power that can move between outlets | not published | |
| Outlets per power unitPosts per cabinet; minimum order two posts, up to 100 posts per site. Reported in secondary coverage (Electrek and Drive Tesla Canada, 1 May 2026) only | 2 | |
| Max power per CCS outletNot published | not published | |
| Max current, CCS | not published | |
| Megawatt Charging System (MCS)MC2 supports MCS; the first-generation MC1 did not | available | ↗ |
| Max power per MCS outletPer stall, according to Tesla | 1200 kW | ↗ ↗ ↗ |
| Max current, MCSEuropean Megacharger, as listed on Tesla's Belgian website and German configurator (reported by electrive, 16 September 2026). Earlier: 1,100 A continuous per post, US listing (Electrek, 1 May 2026, secondary coverage) | 1500 A | ↗ ↗ |
| Output voltage rangeCabinet output in the US listing, where the post is listed at 0–1,000 V (Electrek, 1 May 2026, secondary coverage). For Europe electrive reports "up to 1,000 V" (16 September 2026) | 180–1000 V | |
| Efficiency, grid to plugMore than 96 %. Reported in secondary coverage (Electrek and Drive Tesla Canada, 1 May 2026) only | 96 % | |
| Loss grid to battery, overnight depotAs assumed in the eTRUCKTCO calculators | Not in the calculators % | ↗ |
| CoolingReported in secondary coverage (Drive Tesla Canada, 1 May 2026) only | Liquid-cooled; no ventilation system needed | |
| Cable lengthPost cable (Electrek, 1 May 2026, secondary coverage). The posts may stand up to 100 m from the cabinet in the US listing, up to 60 m in the European one (electrive, 16 September 2026) | 3 m | |
| Protection and temperature rangeIP rating, °C | not published | |
| Noise | not published | |
| Battery bufferBuilt-in storage to soften the grid peak, if any | not published | |
| Size and weightDimensions as listed. Reported in secondary coverage (Electrek, 1 May 2026) only | Cabinet 1,175 × 1,390 × 1,925 mm, 1,100 kg; post 334 × 891 × 1,946 mm, 100 kg |
Software and standards 3 / 4
| OCPPNot published | not published | |
|---|---|---|
| ISO 15118 / Plug & ChargeReported in secondary coverage (Electrek, 1 May 2026) only | ISO 15118-2 and OCPI capable; charging standard MCS 3.2 | |
| Load and fleet managementReported in secondary coverage (Electrek, 1 May 2026) only | The cabinet shares its 1,200 kW between its two posts; each post can take the full 1.2 MW when used alone | |
| Software offeredReported in secondary coverage (Electrek and Drive Tesla Canada, 1 May 2026) only | Portal for site hosts to monitor use, set prices and track performance; over-the-air updates; Tesla handles maintenance, diagnostics and driver support. For sites charging other fleets Tesla takes US$0.08 per kWh delivered |
Buying and running it in Europe 2 / 8
| List priceOne power cabinet with two posts, from Tesla's European configurator as reported by electrive; neither report says whether VAT or installation is included. The 120 kW Basecharger: €17,000. Earlier: US$188,000 in the US configurator (US$179,000 hardware, US$6,000 services, US$3,000 shipping, before taxes and installation; Electrek, 1 May 2026, secondary coverage) | 163000 (VAT not stated) € excl. VAT | ↗ ↗ |
|---|---|---|
| Price per kW installedHardware only or turnkey, say which | not published | |
| Availability in EuropeDelivery date from Tesla's European configurator as reported by electrive (16 September 2026); the five-country launch was reported by Drive Tesla Canada (14 September 2026), quoting Tesla Charging on X | Orderable by businesses in Germany, the Netherlands, Belgium, France and the UK since 14 September 2026; deliveries from mid-2027 | ↗ ↗ |
| Units delivered in Europe to date | not published | |
| Reference customers in EuropeFleets, operators, hubs | not published | |
| WarrantyNot published; Tesla says it guarantees 97 % uptime or more (Drive Tesla Canada, 1 May 2026, secondary coverage) | not published | |
| Service network in EuropeOwn technicians, partners, response time | not published | |
| Turnkey partnersNot published for Europe. In the US the buyer hires its own installer, guided by a Tesla design engineer (Electrek, 1 May 2026, secondary coverage) | not published |
On this site 2 / 3
| In the eTRUCKTCO calculatorsWhich option, and with what loss and cost factor | not published | |
|---|---|---|
| Trucks on this site it can charge at full powerAt the Pilot Travel Centers sites the chargers are at first for the Tesla Semi only. Tesla says the European Semi takes at most 800 kW at MCS stations (electrive, 16 September 2026) | Tesla Semi (see its sheet). Every truck of the T&E comparison except the DAF XG Electric is MCS-capable or announced so (MAN eTGX up to 750 kW): see the truck sheets at /sheets/avs/ | ↗ |
| Anything else worth knowing | First public MC2 site: Bloomington, California, six stalls at up to 1.2 MW (July 2026); it replaced the two-stall MC1 site in Ontario, California, which reached 750 kW. Tesla lists 66 planned US locations in 15 states, and with Pilot Travel Centers plans 4 to 8 stalls per site, at first reserved for the Tesla Semi. Tesla says the Semi refills up to 60 % of its battery in about 30 minutes. | ↗ ↗ ↗ ↗ |
Where these figures come from
- IAA TRANSPORTATION newsroom, 28 July 2026: Tesla Opens Public Megacharger Location with 1.2 MW Charging Capacity
- IAA TRANSPORTATION newsroom, 11 March 2026: Tesla Opens First Public Megacharger for Semi Fleet Customers
- IAA TRANSPORTATION newsroom, 4 March 2026: Tesla Identifies 66 Locations for its Semi Megacharger Network
- IAA TRANSPORTATION newsroom, 4 February 2026: Tesla and Pilot Plan Proprietary Fast-Charging Network for Semi Trucks in the U.S.
- electrive, 3 September 2026: Preview: Electric truck innovations at IAA Transportation
- eTRUCKTCO business case: the four charging systems in the calculators (loss, cost multiplier, auto-selection)
- Apollo Vehicle Safety for Transport & Environment: comparison of electric truck models (AVS377, August 2026)
- electrive, 16 September 2026: Megawatt charging network: Tesla to launch in Europe with 21 sites
- electrive.net, 16 September 2026: Megacharger-Ladenetz für Lkw: Tesla will in Europa mit 21 Standorten loslegen
- IAA TRANSPORTATION exhibitor directory, 16 September 2026: TESLA SEMI (Hall 12, Stand B01; Hall 14/15, TD07)
