Volvo FL Electric
Volvo FL Electric, on show in Hanover: up to 450 km with six battery packs, or about 200 km on the new 14-tonne version with 145 kWh usable. It charges at 43 kW AC (a full charge of four packs takes about 8 hours) or 150 kW DC, so ordinary depot charging is enough for many city rounds. What it costs to run against a diesel FL cannot be worked out yet: Volvo publishes no price and no energy consumption.
Battery176–565 kWh
Range200–450 km
DC charging150 kW

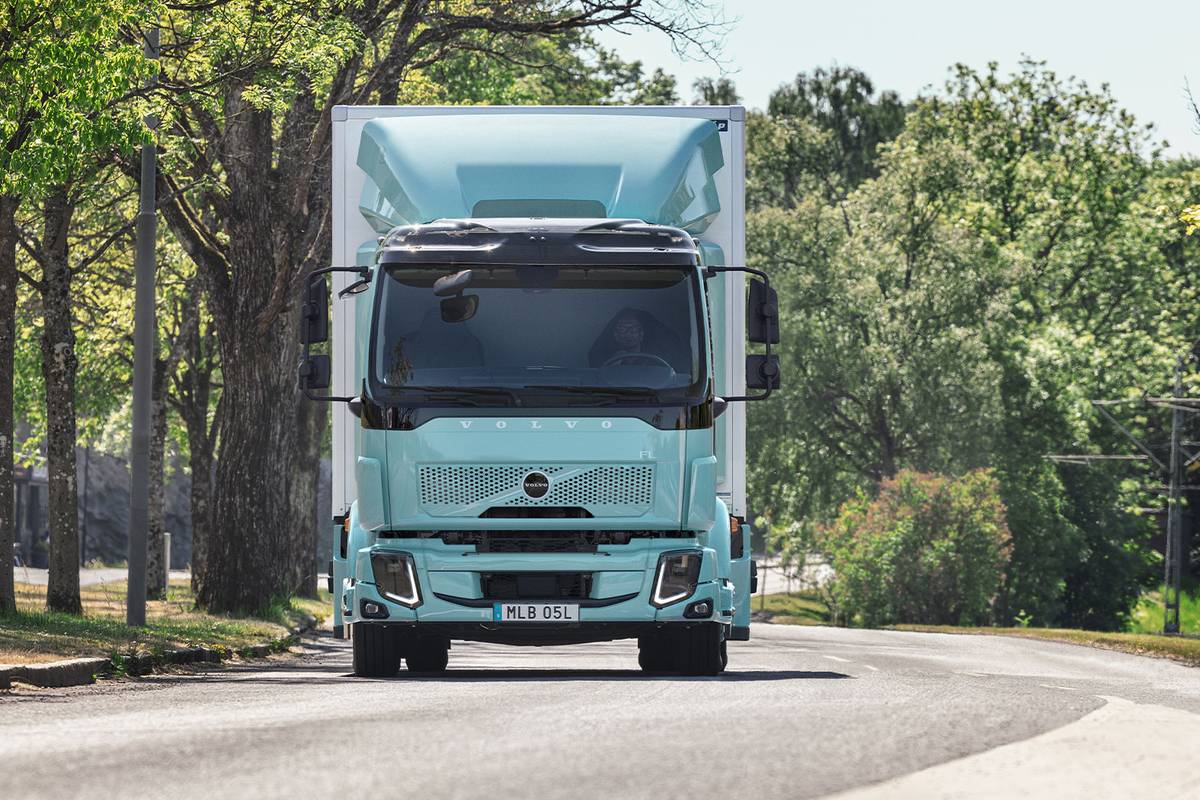

Photo: Volvo Trucks
42 of 77 values are filled in.
Know one we are missing, or one that is wrong? This sheet is open for anyone to correct — type into it on eTRUCKTCO.eu, press Review & send, and confirm the e-mail. It is on all three sites the moment we have checked it.
Correct or complete this sheet
General 14 / 19
| ModelModel name as sold. Versions: 16 and 18 t, and a 14 t entry version announced 9 December 2025. Which version stands in Hanover is not stated | FL Electric | ↗ ↗ ↗ |
|---|---|---|
| Vehicle typee.g. tractor, rigid | Battery-electric medium-duty rigid for door-to-door deliveries and refuse collection | ↗ |
| Axle configurationVolvo's specification table lists only the 4x2 rigid; the 14 t release mentions several axle configurations without naming them | 4x2 | ↗ ↗ |
| Gross combination weightAs Volvo's specification table gives it: 'up to 18.6 tonnes'. Volvo's UK model-range sheet plates the 16 t for solo use (design GCW 16 t, no trailer) with the RS1132A drive axle as standard | 18.6 t | ↗ |
| Gross vehicle weightFor this rigid: the gross vehicle weight of the three versions, 14, 16 and 18 t. Older figures (2023) give 16.7 t | 14000–18000 kg | ↗ ↗ ↗ |
| Kerb weightChassis-cab weight of the 16 t version (UK specification), by wheelbase from 3,800 to 6,500 mm: 6,490 kg on the shortest, 7,015 kg on 6,200 mm. Without body and driver, ±3 %; Volvo does not say which battery set-up the weights are for. Not published for the 14 and 18 t | 6490–7015 kg | ↗ |
| PayloadNot published as a net figure. Volvo's UK model-range sheet gives 8,985 to 9,510 kg for the 16 t by wheelbase, but that includes the body, driver and equipment, so the body's weight still has to come off. Volvo (2023): about 500 kg more payload for every NCA battery pack left off | not published | |
| Payload if the Council position on 96/53/EC is adopted | not published | |
| Front / rear axle design loadFront / rear axle design capacity of the 16 t version (UK specification), also the plated axle loads there | 5800 / 10900 kg | ↗ |
| Drive-axle load at maximum payload | not published | |
| Overall lengthOverall chassis length of the 16 t version, wheelbase 3,800 to 6,500 mm (UK specification); front overhang 1,320 mm. The body can change the overall length | 7825–10525 mm | ↗ |
| Overall widthDown to 2.4 m on the 14 t version. The cab of the 16 t is 2,282 mm wide on Volvo's UK model-range drawing; the overall width of the 16 and 18 t is not stated | 2400 mm | ↗ |
| Overall heightHeight to the cab roof of the 16 t chassis-cab on Volvo's UK model-range drawing (medium chassis height, ±10 mm on air suspension); a body usually stands higher. Frame top about 900 mm above the ground at the rear. Ground clearance of the 14 t version: 240 mm | 2725 mm | ↗ |
| WheelbaseGiven for the 14 t version; the 16 t comes in the same range, in ten lengths 300 mm apart (UK specification) | 3800–6500 mm | ↗ ↗ ↗ |
| Turning radius, minimumHalf of the 13.3 m turning circle between kerbs (14.6 m between walls) of the 16 t on the shortest wheelbase, 3,800 mm; on 6,500 mm it is 21.4 m (22.7 m). Volvo calls the figures theoretically calculated | 6.65 m | ↗ |
| Top speedNot published | not published | |
| SuspensionUK specification of the 16 t: two-bag air suspension at the rear and air at the front as standard; parabolic steel front springs are an option | Air suspension on all axles | ↗ ↗ |
| Fifth wheelNot applicable: rigid truck | not published | |
| Clean-sheet electric design or converted diesel platform | Electric version of the Volvo FL, assembled on the same mixed line as the diesel and gas FL and FE | ↗ |
Battery 5 / 9
| Battery capacity, installed (gross)176 kWh LFP on the 14 t (gross figure given to electrive on request); 280–565 kWh with 3 to 6 NCA packs of about 94 kWh on the 16 and 18 t. The LFP packs are also offered on the larger trucks, up to eight packs | 176–565 kWh | ↗ ↗ |
|---|---|---|
| Battery capacity, usable14 t version only; not published for the 16 and 18 t | 145 kWh | ↗ |
| Cell chemistryLFP is a first for Volvo Trucks (electrive) | LFP on the 14 t version and as a new option on the 16 and 18 t; NCA in the 94 kWh packs | ↗ ↗ |
| Cell supplierNamed by electrive, not in Volvo's release; the supplier of the NCA packs is not stated in the sources read | CATL (LFP batteries) | ↗ |
| System voltageNot published | not published | |
| Pack architectureThe packs are shaped and placed so they do not get in the way of bodywork on the frame | Separate packs on the chassis: 3 to 6 NCA packs, or LFP packs (4 on the 14 t, up to 8 on the larger trucks) | ↗ ↗ ↗ |
| Battery life, ratedcycles / km / years | not published | |
| Operating temperature, battery and thermal system | not published | |
| Battery warrantyNot published | not published |
Range and energy 2 / 8
| Range, as claimedAbout 200 km for the 14 t (depending on load, driving, temperature); 280 km with three and up to 450 km with six NCA packs | 200–450 km | ↗ ↗ ↗ |
|---|---|---|
| Range, favourable conditionsNot published | not published | |
| Range, real-world | not published | |
| Range test conditionWeight and temperature not published | Distribution work without an electro-mechanical PTO (the 280 and 450 km figures) | ↗ |
| Energy consumptionNot published | not published | |
| Test fleet mileage | not published | |
| Drag coefficient (Cd) | not published | |
| Regenerative braking, peak | not published |
Charging 3 / 6
| DC charge ports | CCS | ↗ |
|---|---|---|
| Max DC charge powerFull charge of four NCA packs: 2.3 hours at 150 kW DC (product page) | 150 kW | ↗ ↗ |
| Charge time 20–80 %Left empty: Volvo's 14 t release gives 20–80 % in 'approximately 1.28 hours with eight battery units', which does not fit the four packs electrive reports for that version; electrive quotes about one hour for 0–100 % on DC | not published | |
| Megawatt Charging System (MCS)Not mentioned | not published | |
| AC chargingDoubled from 22 kW in the late-2023 update. Full charge of four NCA packs: about 8 hours | 43 kW on-board charger | ↗ ↗ ↗ |
| Vehicle-to-grid / bidirectionalyes / no | not published |
Powertrain 4 / 7
| Motor layout | One electric motor with a two-speed gearbox | ↗ ↗ |
|---|---|---|
| Continuous power175 hp as Volvo gives it | 130 kW | ↗ |
| Peak powerAlso the figure for the new 14 t version | 180 kW | ↗ ↗ ↗ |
| Peak torqueNot published in the current material | not published | |
| Transmission | Two-speed gearbox | ↗ |
| Gradeability, maximumNot published | not published | |
| Acceleration 0–80 km/h at GCW | not published |
Safety 2 / 3
| Truck safety ratingNot rated: the FL is not among the seven Volvo models Euro NCAP has rated (Volvo, 22 April 2026) | not published | |
|---|---|---|
| Driver assistance (ADAS)Added in the late-2023 update. Volvo's UK model-range sheet for the 16 t lists intelligent speed assistance with road-sign recognition and driver-attention monitoring (EU GSR2 step 2) as standard | Detection of pedestrians and cyclists, side collision monitoring, driver warning system; 360-degree camera optional | ↗ ↗ |
| Braking and stabilityStandard on the 16 t in Volvo's UK model-range sheet | Electronic braking system (EBS) with traction control and hill hold | ↗ |
Cab and equipment 4 / 5
| Cab typeUK specification of the 16 t: day cab as standard; the 'Comfort' cab with extra storage or a fold-up bunk behind the driver is an option | Day cab or short sleeper cab | ↗ ↗ |
|---|---|---|
| Standard equipmentFrom the late-2023 update; standard or optional not stated | LED headlights, slimmer exterior mirrors, redesigned front | ↗ |
| Power take-off (ePTO)Lets bodies run on electricity without an electro-mechanical motor | Electric PTO interface for the body | ↗ ↗ |
| Driver positionleft, right, centre | not published | |
| TyresThe tyres behind Volvo's weights and dimensions for the 16 t (UK specification); aluminium rims as standard, steel rims optional | 285/70R19.5 on front and drive axle | ↗ |
Service and warranty 2 / 5
| Service interval | not published | |
|---|---|---|
| Vehicle warrantyNot published | not published | |
| Service network in EuropeVolvo Trucks as a whole, not a European figure; its releases also give 2,200 service points in about 130 countries | More than 2,500 certified workshops and dealers | ↗ ↗ |
| Over-the-air updatesyes / no | not published | |
| Telematics / fleet portalIn the UK specification of the 16 t, the 4G telematics gateway and the 'My Truck' driver app (with a Volvo Connect subscription) are options | Volvo Connect: truck monitoring, predictive service planning, route planning and real-time energy status | ↗ ↗ |
Production and market 4 / 12
| Production / assemblyThe 1,000th electric FL or FE left the plant in December 2024 | Blainville-sur-Orne (Normandy, France), in series since March 2020 | ↗ |
|---|---|---|
| Key suppliers | not published | |
| First customer | not published | |
| Homologation in the EUStandard on the 16 t in Volvo's UK model-range sheet; the body is approved in a later stage | EU whole vehicle type approval as a first-stage chassis-cab | ↗ |
| Availability in EuropeAlso sold in the Middle East, Africa, Asia and Australia | 16 and 18 t on sale since 2019; the 14 t version goes into production in the second half of 2026 | ↗ ↗ |
| Trucks delivered to dateNo FL figure. Volvo: more than 5,000 electric trucks of all models sold (December 2025) | not published | |
| List price, EuropeNot published | not published | |
| Lease rate | not published | |
| Maintenance cost | not published | |
| Residual value after 5 years | not published | |
| Toll and CO₂ classEU CO₂ class 5 = zero-emission | not published | |
| IAA Transportation 2026Not a premiere. The 'Volvo FL 4x4 crew cab' among Volvo's test-drive trucks is not named as electric | Hall 11, Stand D09; one of eight trucks on Volvo's stand, next to the FH Electric, FM Electric and the extended-range FH Aero Electric | ↗ ↗ ↗ |
Company 2 / 3
Where these figures come from
- IAA Transportation newsroom, 30 July 2026: Volvo Trucks Showcases New Drivelines and Truck Generations at IAA TRANSPORTATION 2026
- Volvo Trucks: Volvo FL Electric (product page with specifications)
- Volvo Trucks, 9 December 2025: Volvo Trucks launches the 14-tonne Volvo FL Electric – tailor-made for city transports
- Volvo Trucks, 20 June 2023: Volvo presents electric trucks with longer range
- Volvo Trucks, 1 July 2026: Volvo Trucks at IAA 2026: New drivelines and technologies show the way forward for customers and the transport industry
- Volvo Trucks France, February 2025: Le 1000e camion électrique Volvo assemblé en France
- electrive, 14 November 2023: Volvo Trucks overhauls its medium-duty electric truck duo (Carla Westerheide)
- electrive, 11 December 2025: Volvo adds 14-tonne variant to FL Electric range (Carla Westerheide)
- IAA Transportation 2026: press conference line-up, 14–15 September (Volvo Trucks: Hall 11, D09)
- Volvo Trucks on this site (IAA 2026 maker sheet)
- Volvo Trucks UK, 17 February 2026: Model Range – FL Battery Electric 4x2 Platform 16/18 tonne, Full Air Suspension (FL 42 R E 16), PDF
